Closed Frame Touch Monitor 7-27 Inches(3A Series)

Product Information

Design:Tablet Design,Smooth Lines.

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Mounting:Wall-mounted,Desktop,Embedded

Customizable: Camera,Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features

● 10 points pcap smooth touch,touch accuracy up to 0.1MM

● Industrial-grade LCD panels for long operating life

● IP65 and front protection to resist water and dust

● The visual effect is better under the sun

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

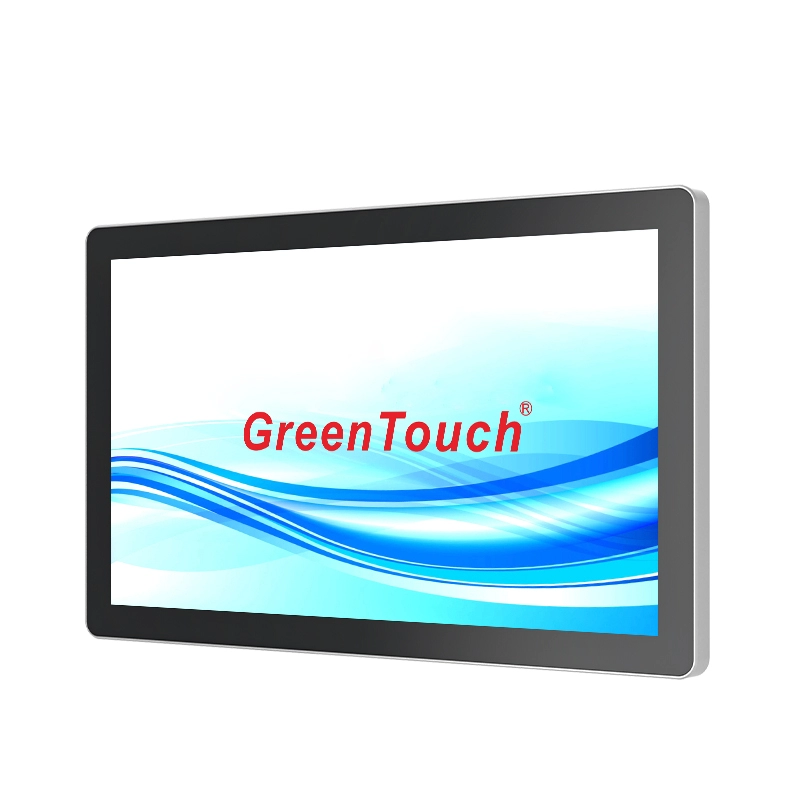

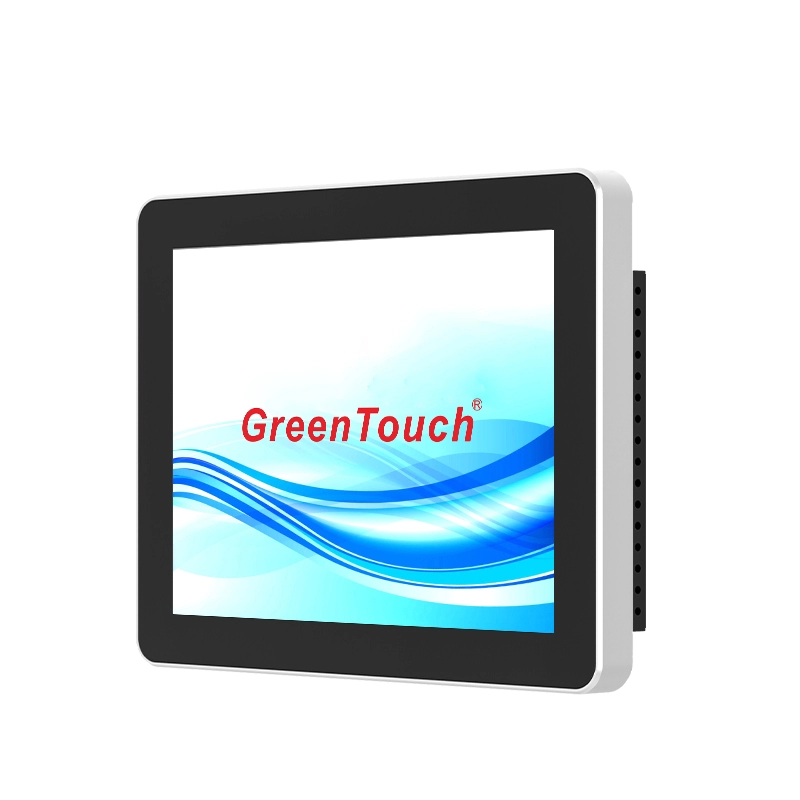

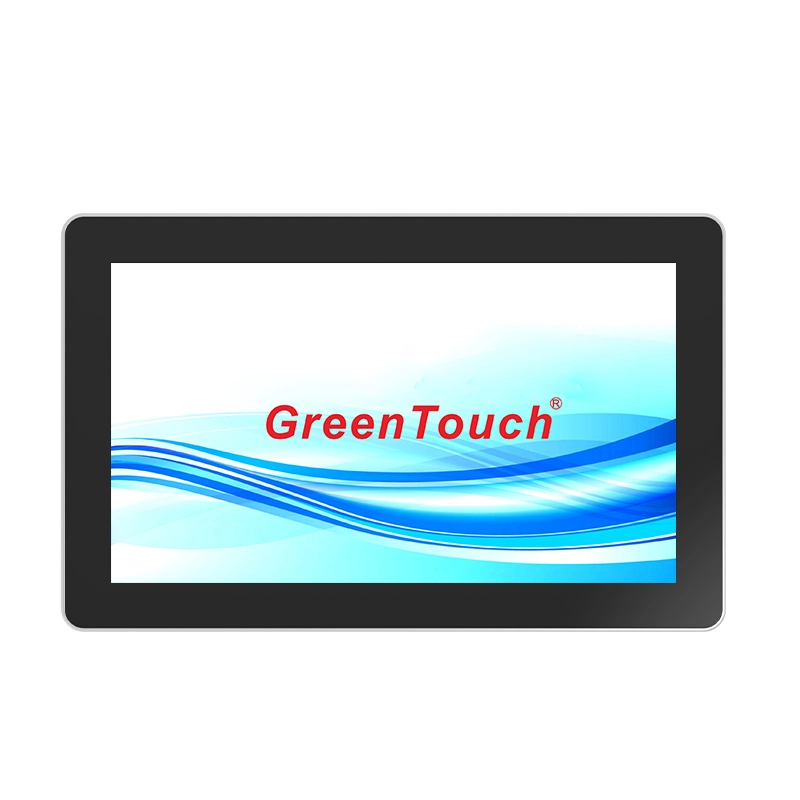

3A Touch Monitor Overview

GreenTouch’s close frame touch monitor 3A series provide cost-effective solutions for customers who need industrial and commercial touch.A comprehensive size range from 7 ”to 27” ensures compatibility with:Self-service inquiry, ticketing, railway transportation, education, medical and retail terminals, and other industries.
Versatile Connectivity

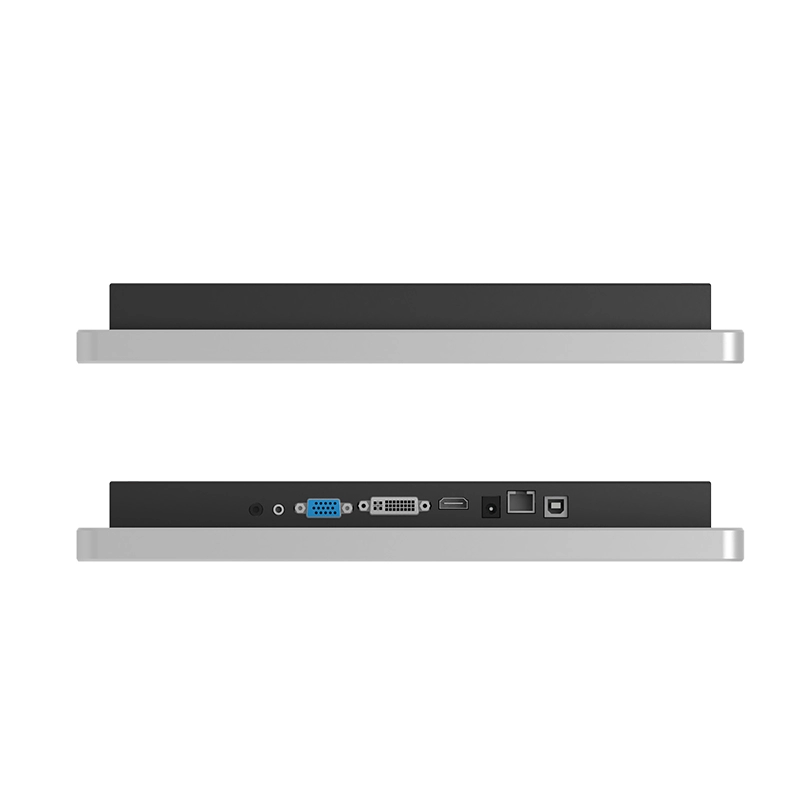

The GreenTouch capacitive touch monitors 3A series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

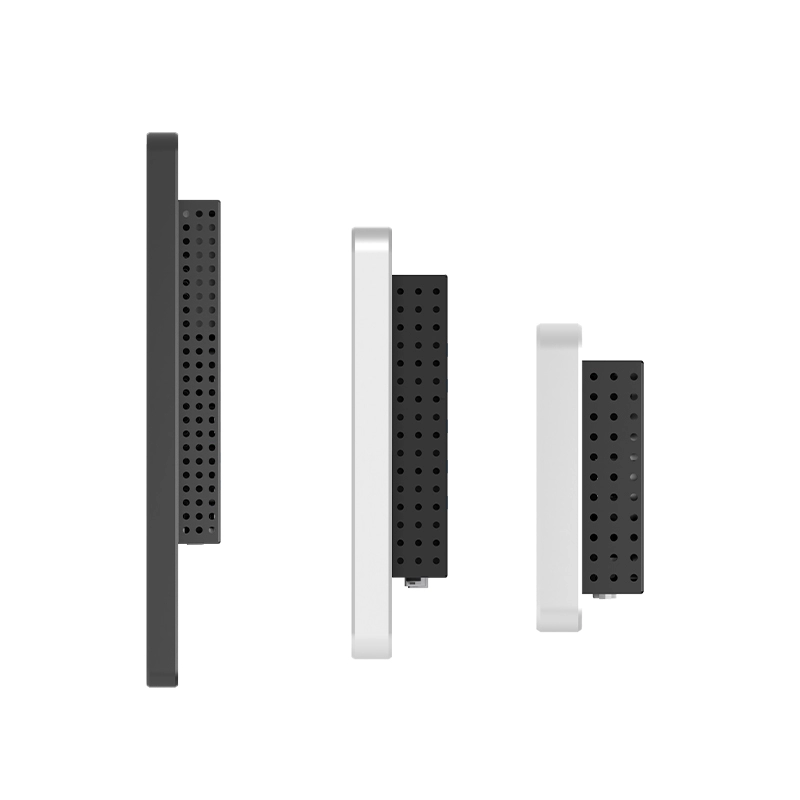

3A adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. This model features an industrial aesthetic design, with an aluminum alloy frame and an aluminum alloy painted back cover, combining functionality, technology, and materials.

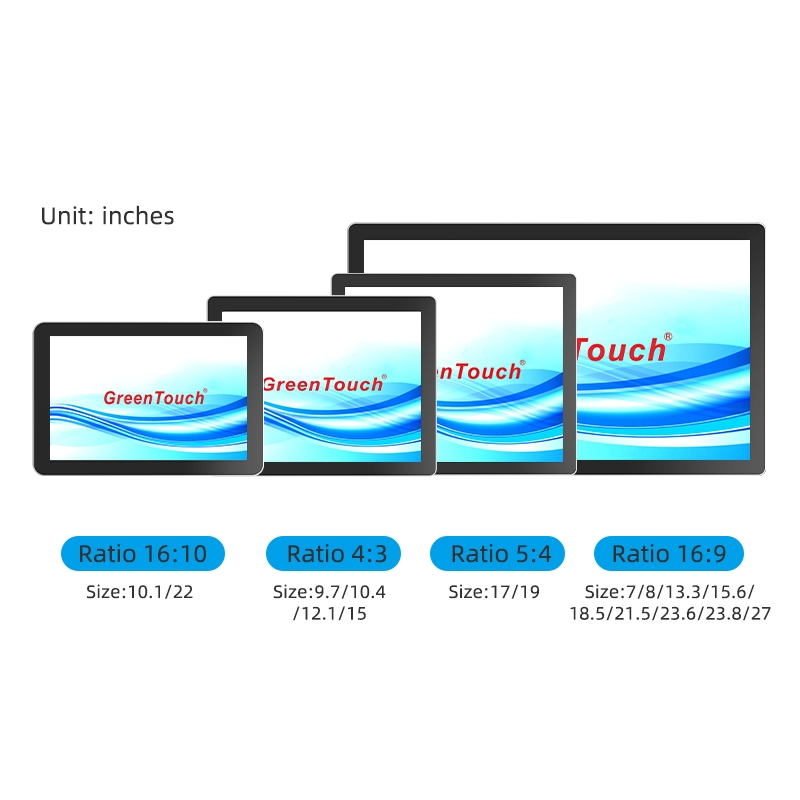

Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 4:3) Size:9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:7”,8”,13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27”

Mounting Options

Embedded

3A touch monitor is equipped with the Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor’s VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.

Wall Mount

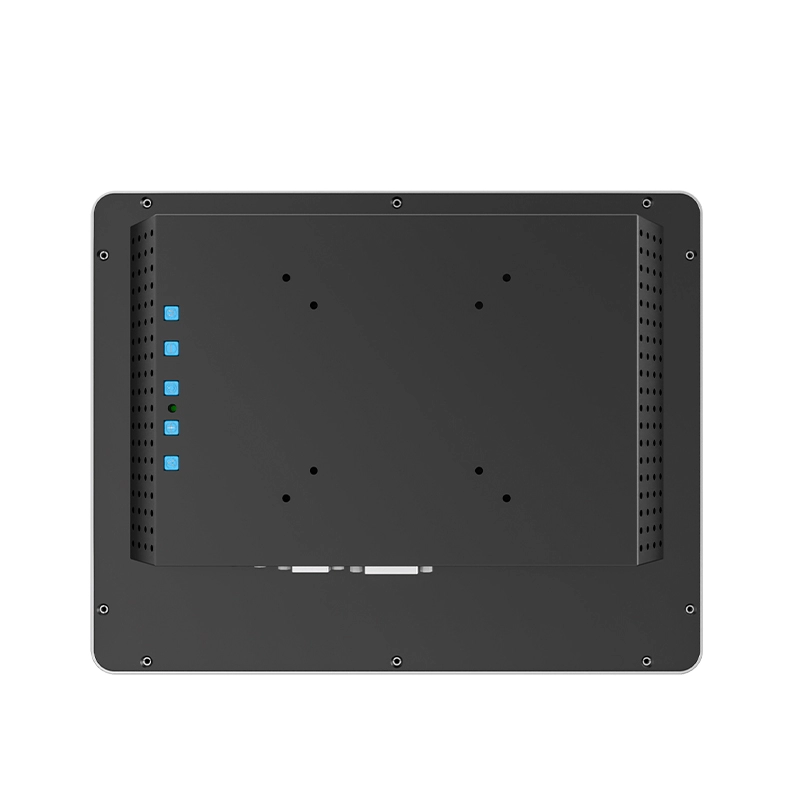

The monitor includes a universal 100/75mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3A Series) Regular Sizes: 7.0″,8.0″,9.7″,10.1″,10.4″,12.1″,13.3″,15″, 15.6″,17″,18.5″,19″,21.5″,22″,23.6″,23.8″,27″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:7 to 27 inches Resolution:1920×1080,1680×1050,1280×800, 1366×768,1024×768,800×600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)
