Open Frame Touch Monitor 15-23.6 Inches(5A Series)

Product Information

Touch Type:Capacitive,IR,Resistive(Optional)

Touch Points: Capacitive 10,IR 10,Resistive 1

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Features

● Good sealing performance,passed EMC anti-interference testing

● Industrial-grade LCD panels for long operating life

● Stable and sensitive,no jumping points,no break points,no blind spots

● Dense ventilation holes for reliable 24/7 operation

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

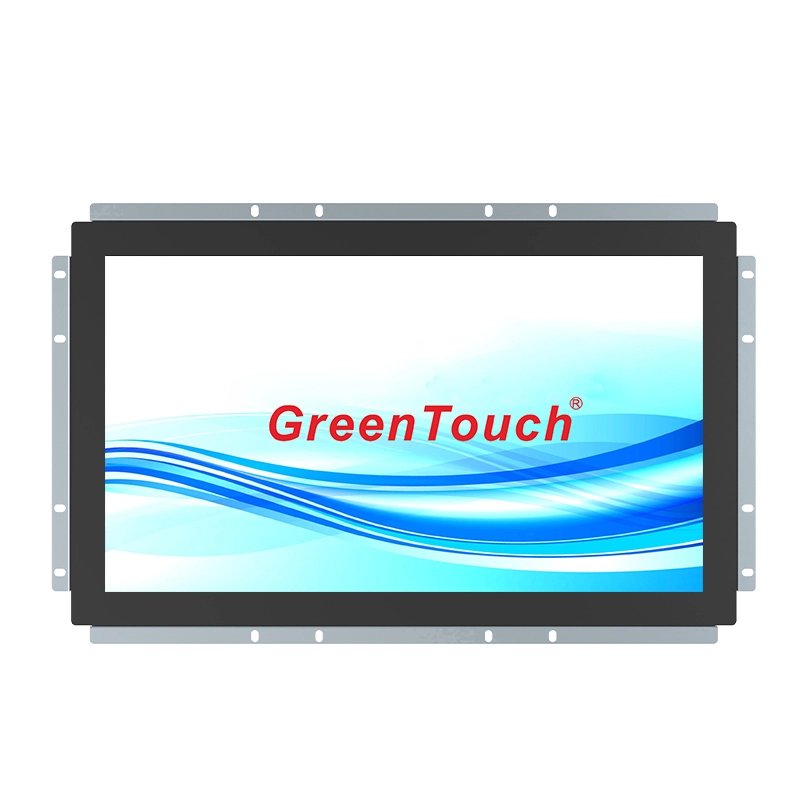

5A Touch Monitor Overview

GreenTouch’s open frame touch monitor 5A series provide stable and efficient solutions for customers who need industrial touch.A full range of touch technologies (capacitive,infrared,resistive) ensures compatibility with the following fields: industrial control, terminal accessories,human-machine interaction,smart healthcare, and smart living
Versatile Connectivity

The GreenTouch touch monitors 5A series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

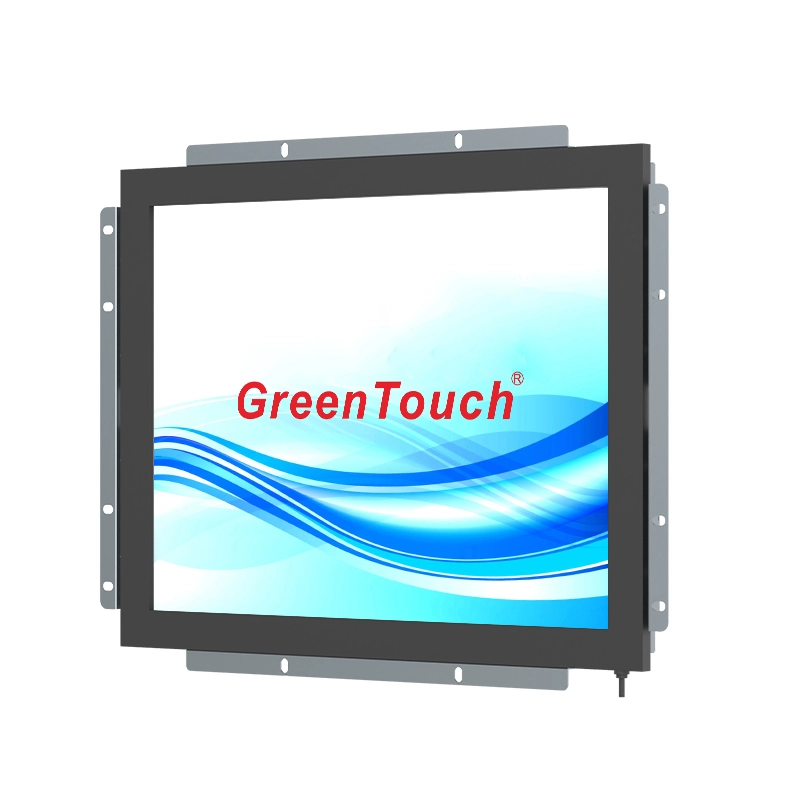

5A adoptIndustrial metal front shell and black or silver frame,durable and reliable,support three types of touch，projected capacitive 10 points touch, infrared 10 points touch，resistive one point touch，sensitive sensing,accurate fixed point. 5A with excellent image clarity,resolution,transparency,good accuracy and vivid images,which can instantly capture and attract attention.They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.

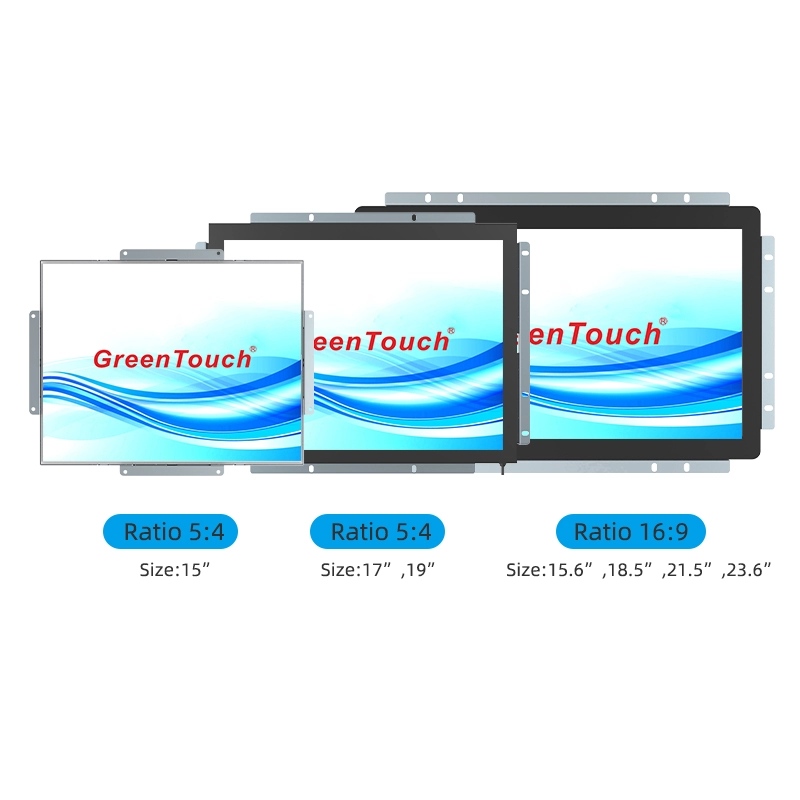

Multiple Sizes Available

(Ratio 4:3) Size:15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:15.6”,18.5”,21.5”,23.6”

Mounting Options

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

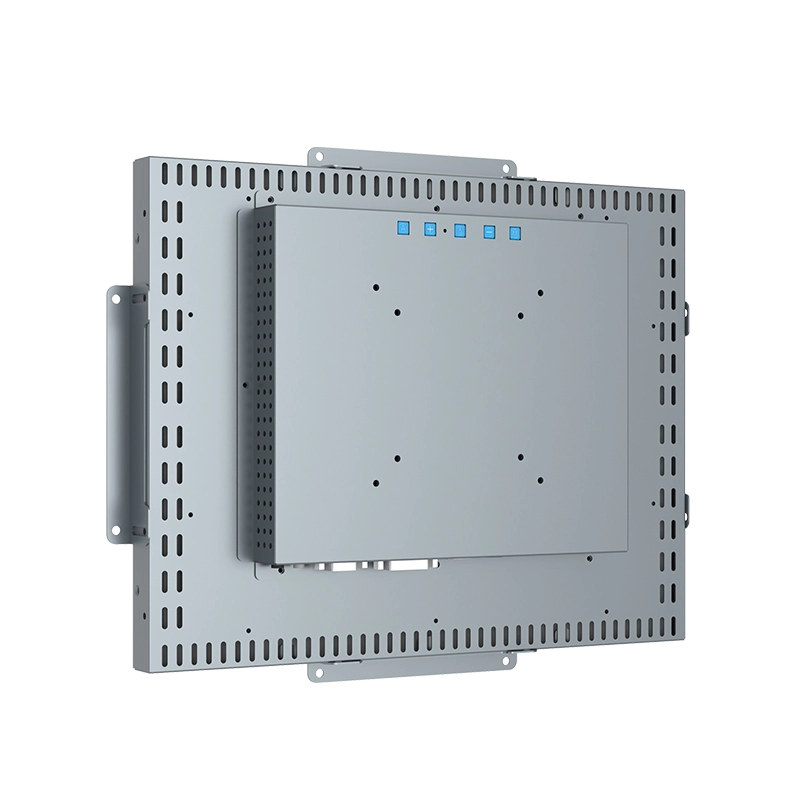

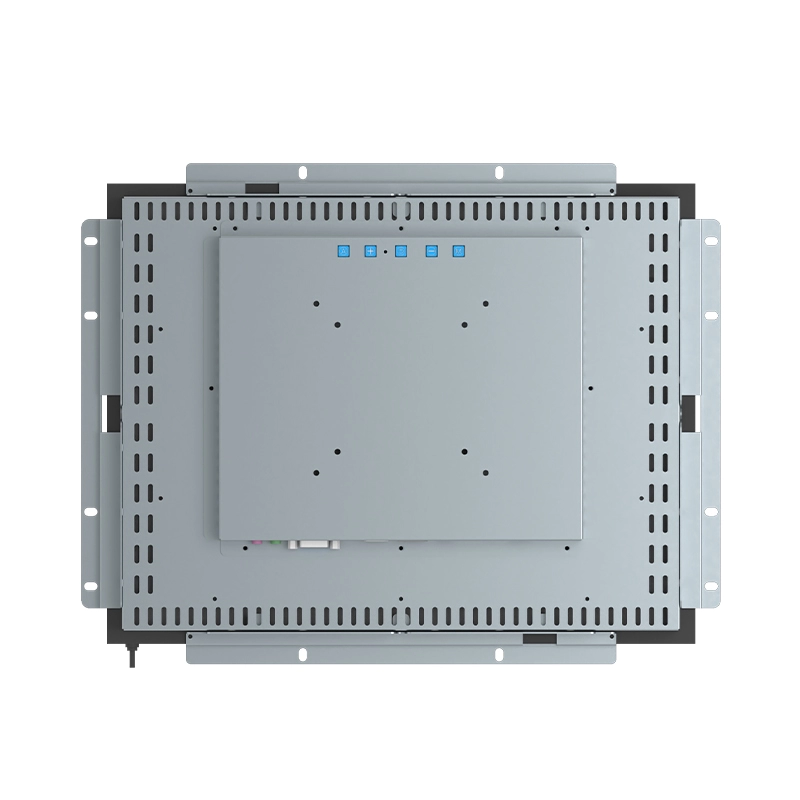

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

5A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(5A Series) Regular Sizes: 15″, 15.6″,17″,18.5″,19″,21.5″,23.6″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:15 to 23.6 inches Resolution:1024×768,1920×1080,1280×1024 ,1366×768@60Hz Aspect Ratio:4:3,16:9,5:4 Brightness:250,300,400,1000 nits Touch Type:PCAP/IR 10 Points,Resistive One Point Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-20°C to 70°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:EMC anti-interference

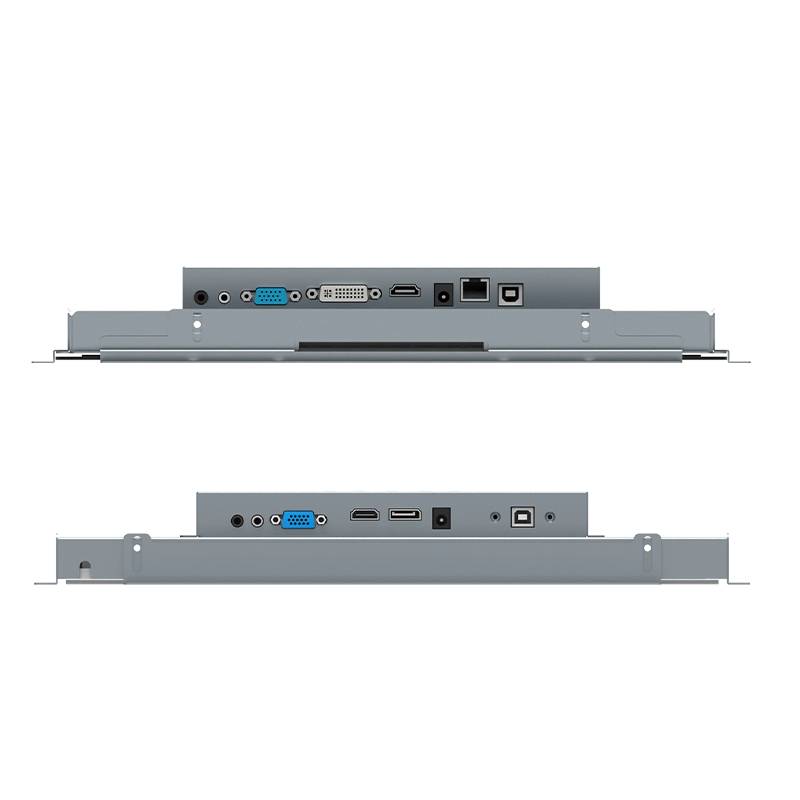

About Display Ports

1.VGA+DVA+HDMI

2.VGA+HDMI+DP
