Panel Mount Touch Monitor 10.1-23.8 Inches(3D Series)

Product Information

Design:Seamless aluminum unibody,built for industrial rigors

Performance:Highly durable, corrosion-resistant,interference-resistant

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features

● Fully sealed housing,durable construction

● Optically bonded Touch Panel to LCD Panel

● IP65 and front protection to resist water and dust

● Multiple industrial protections, stable operation 24/7

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

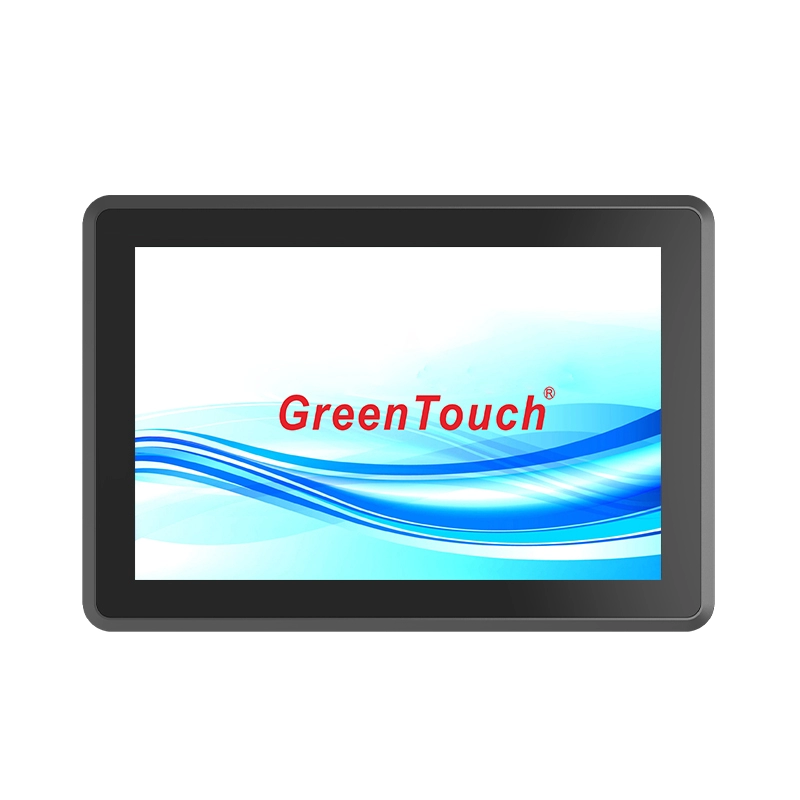

3D Touch Monitor Overview

GreenTouch’s panel mount touch monitor 3D series provide stable and efficient solutions for customers who need industrial touch.A comprehensive size range from 10.1”to 23.8” ensures compatibility with:industrial automation and smart manufacturing, medical and laboratory, outdoor and public facilities, transportation, retail and food service, energy and utilities.
Versatile Connectivity

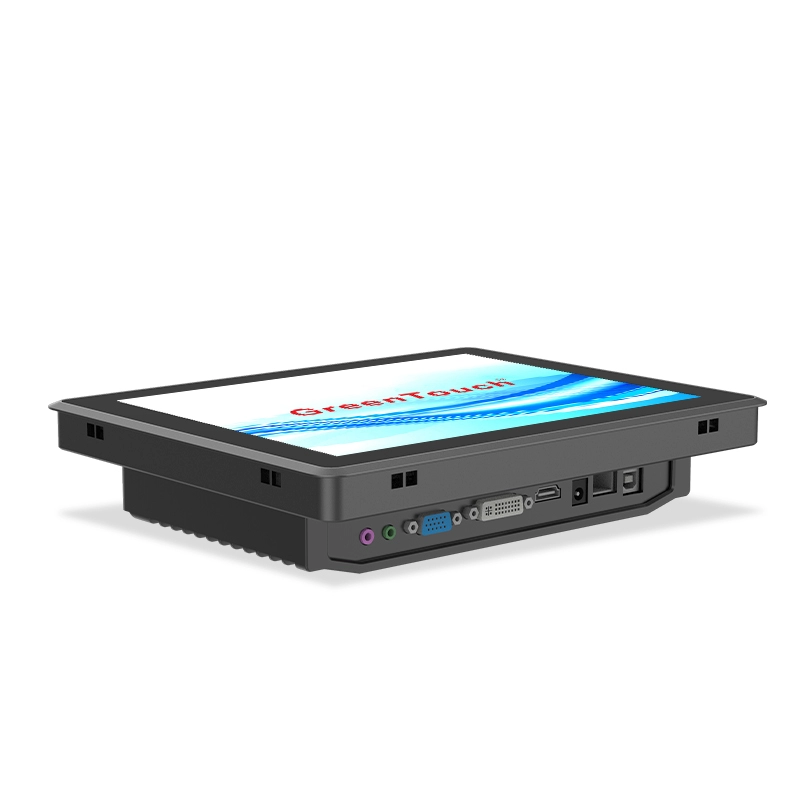

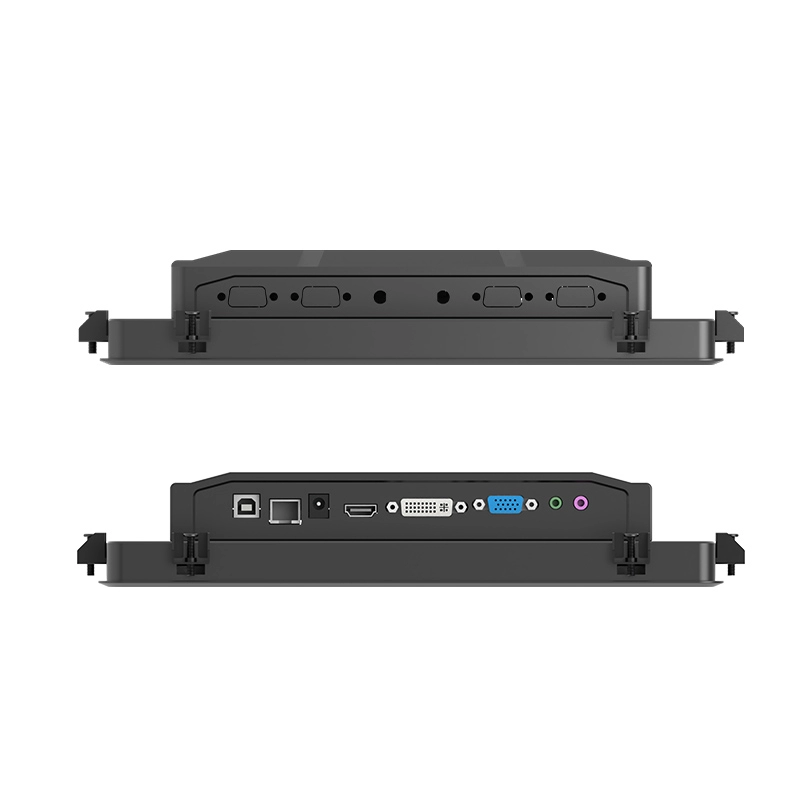

The GreenTouch capacitive touch monitors 3D series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

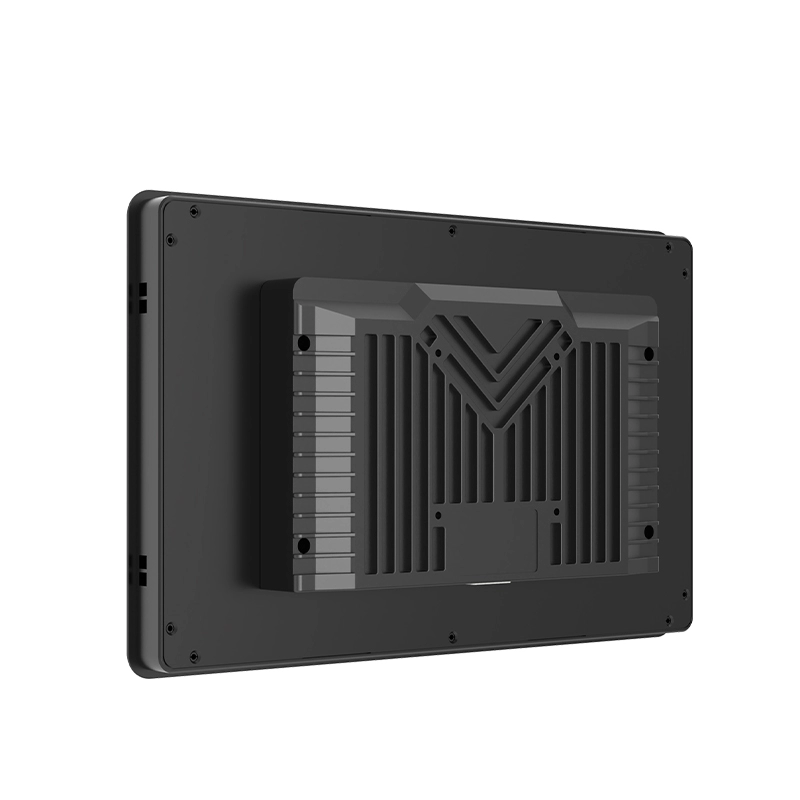

3D adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its bezel and back cover are made using a modern,high-quality aluminum alloy custom mold,die-cast in one piece,and the fully enclosed structure is suitable for harsh outdoor environments,preventing water, dust,and dirt from entering the monitor.The back cover uses a finned heat dissipation design, with no fan and zero noise, providing better heat dissipation and corrosion resistance.

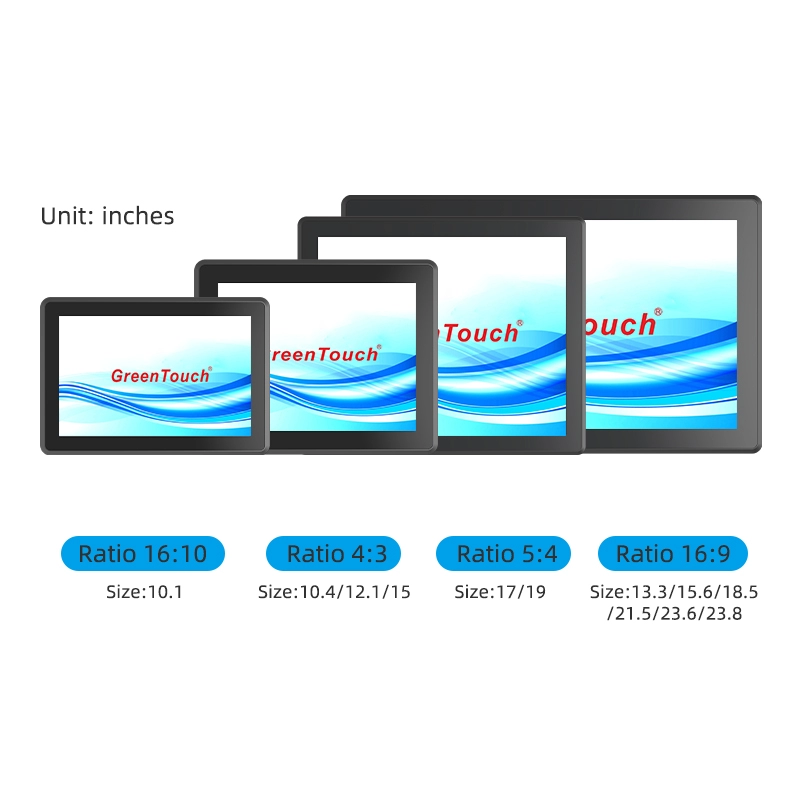

Multiple sizes available

(Ratio 16:10)Size:10.1”,22”
(Ratio 4:3)Size:10.4”,12.1”,15”
(Ratio 5:4)Size:10.4”,12.1”,15”,17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27

Mounting Options

Embedded

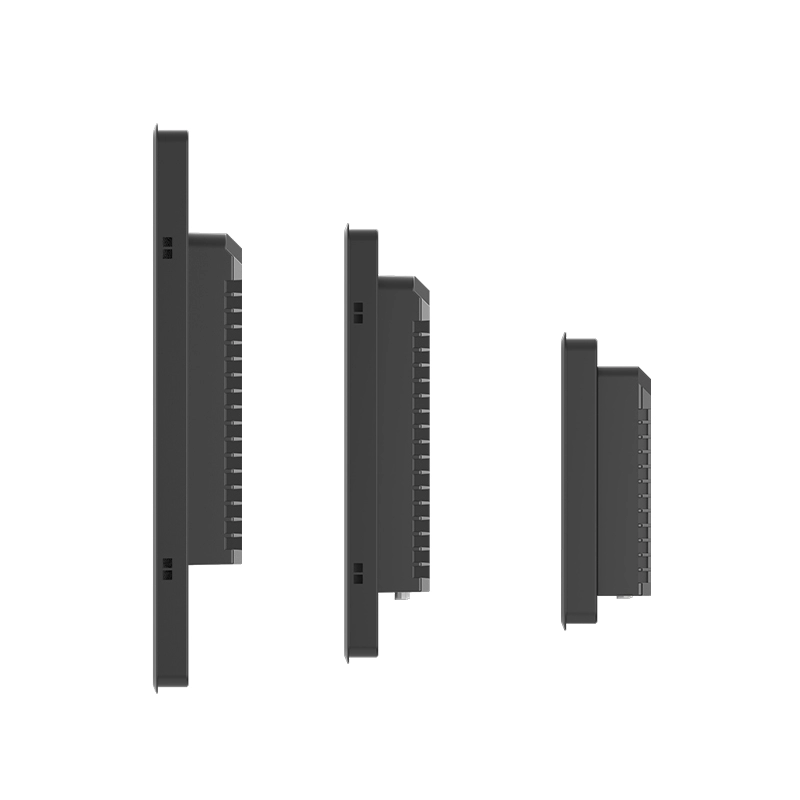

The 3D series monitors feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3D is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3D Series) Regular Sizes:10.1″,10.4″,12.1″,13.3″,15″,15.6″,17″, 18.5″,19″,21.5″,22″,23.6″,23.8″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1280×800,1024×768,1920×1080, Aspect Ratio:16:10,4:3,16:9,5:4 1280×1024,1366×768@60Hz Brightness:250,300,400,430,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100x100mm Cantilever:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65,IK06 impact resistance

About Display Ports

1.VGA+DVA+HDMI

2.VGA+HDMI+DP

Application Field
