Open Frame Touch Monitor 10.1-27 Inches(3C Series)

Product Information

Quality: High Reliability, MBTF 50,000 Hours

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features

● A+grade original industrial TFT LCD,LED Backlight

● 2-3mm cover glass with 6H,7H surface hardness

● IP65 and front protection to resist water and dust

● Dense ventilation holes for reliable 24/7 operation

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

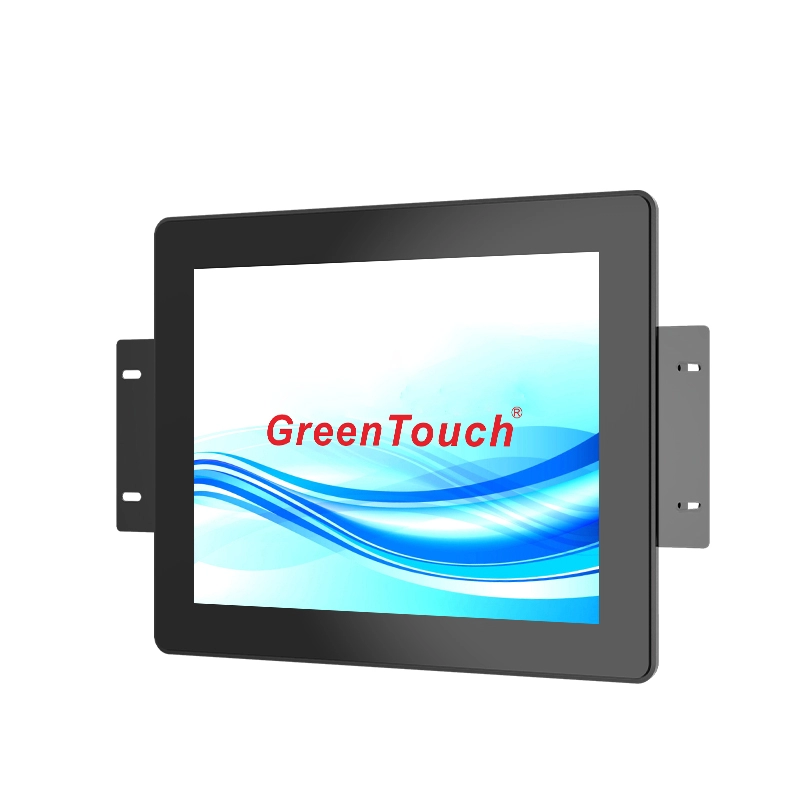

3C Touch Monitor Overview

GreenTouch’s open frame touch monitor 3C series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 7 ”to 27” ensures compatibility with:Industrial control,terminal accessories,human-machine interaction,smart healthcare,smart Livelihood.
Versatile Connectivity

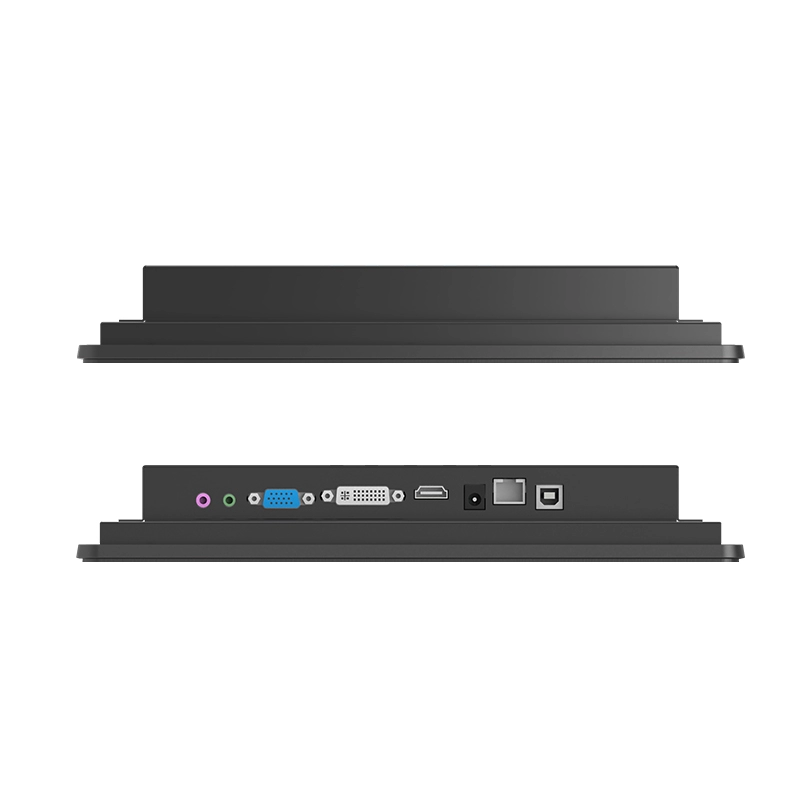

The GreenTouch capacitive touch monitors 3C series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

3C adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 3C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .

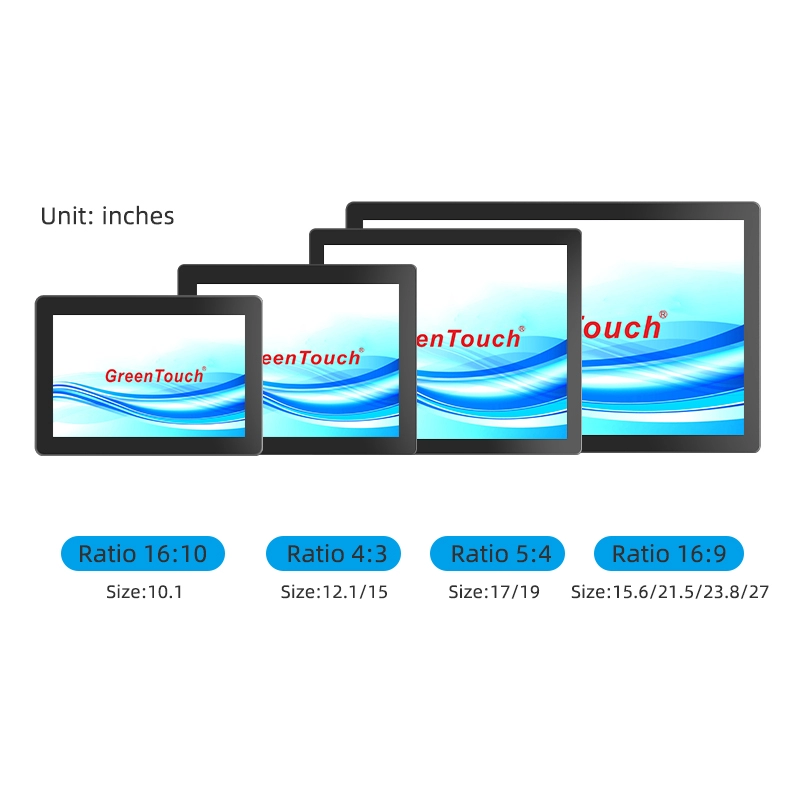

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 4:3) Size:12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:15.6”,21.5”,23.8”,27

Mounting Options

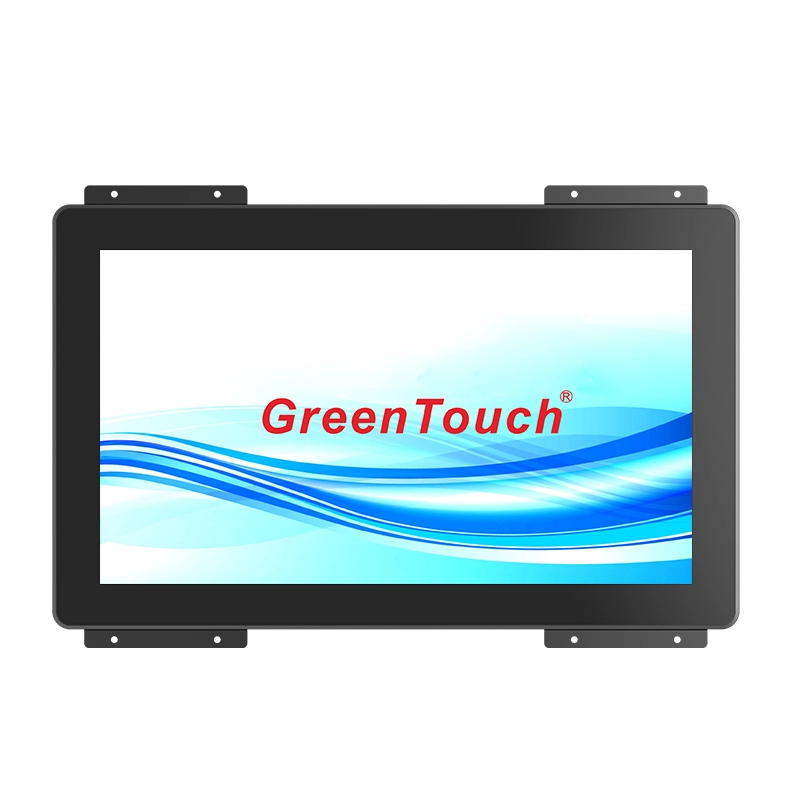

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

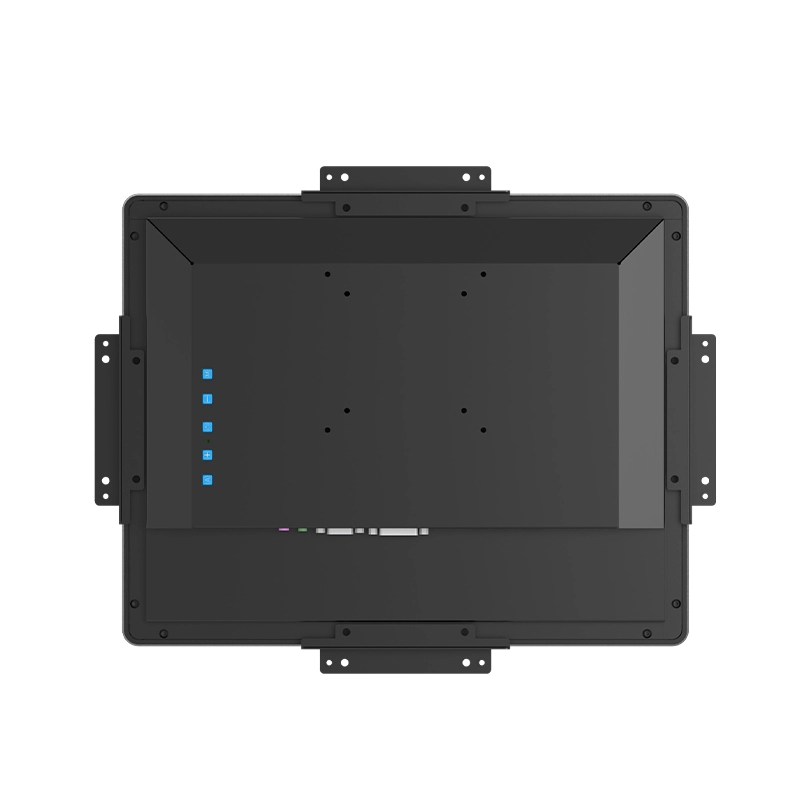

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Cantilever

3C is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for cantilever installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3C Series) Regular Sizes: 10.1″,12.1″,15″, 15.6″,17″,19″, 21.5″,23.8″,27″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 27 inches Resolution:1280×800,1024×768,1920×1080, 1280×1024@60Hz Aspect Ratio:16:10,4:3,16:9,5:4 Brightness:250,300,400,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100x100mm Cantilever:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK06 impact resistance

About Display Ports

1.VGA+DVA+HDMI

2.VGA+HDMI+DP
