Panel Mount Touch Panel PC 10.1-23.8 Inches(3E Series)

Product Information

Processor: Intel® Core™ i3/i5/i7 Options

RAM:2-8GB,SSD:32-256G

Wide temperature range:-20℃-70℃

Mounting: Embedded,Wall-mounted,Desktop

Features

● Design:Precision compact frame,simple and easy to integrate

● Smart and sensitive with up to 10 points Pcap touch

● IP65 and front protection to resist water and dust

● EMC anti-interference and explosion-proof IK06

● High-speed gigabit Ethernet port, built-in wireless WIFI

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

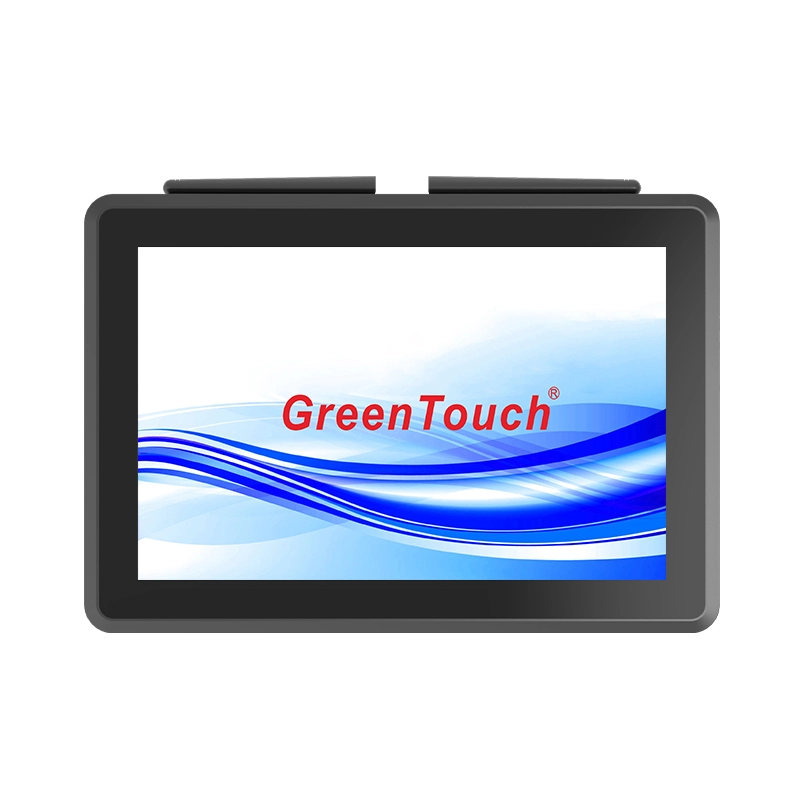

3E Touch Panel PC Overview

GreenTouch touch panel PC 3E series with Intel® Core™ i3/i5/i7 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 10.1″ to 23.8″ provides a versatile and future-ready solution for industrial computing. They are suitable for human-machine interfaces for CNC machine tools and special mechanical equipment，intelligent automated production lines，smart healthcare and self-service ticket retrieval/query machines, intelligent retail self-service checkout/ordering machines,digital signage query terminals.
Configuration and Connectivity

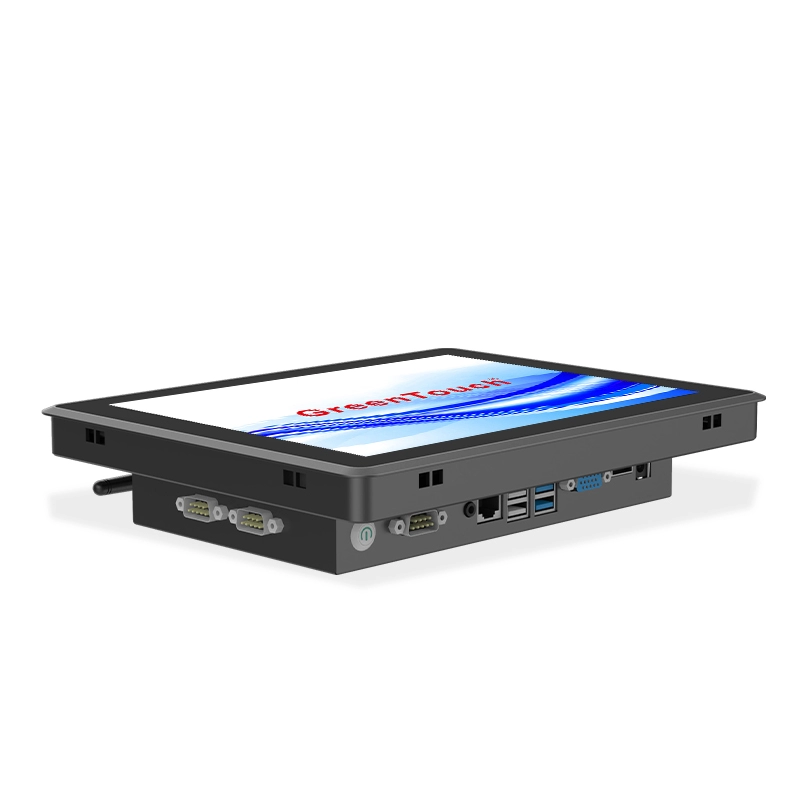

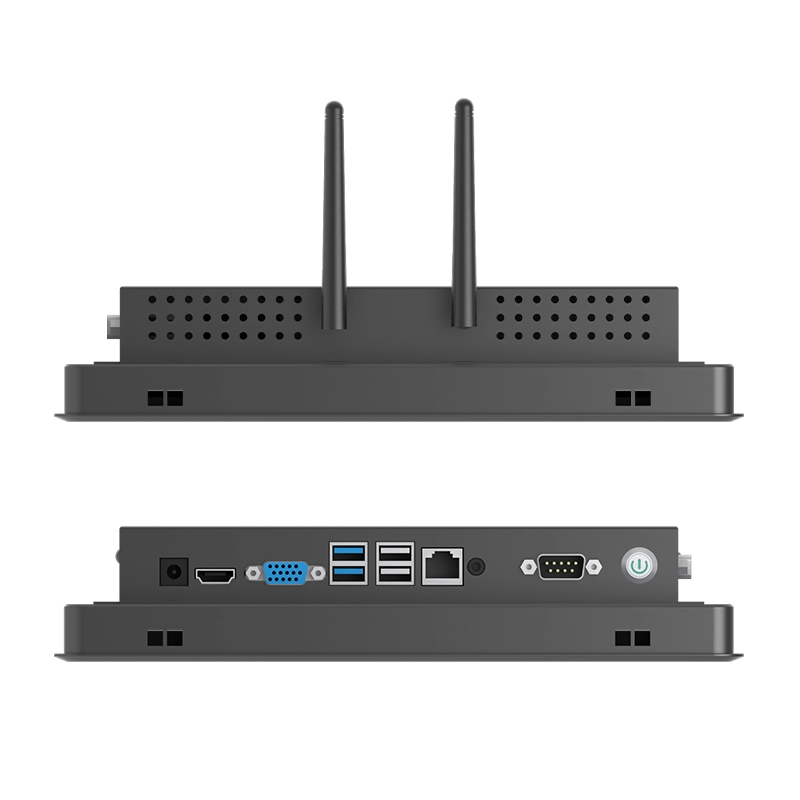

The GreenTouch capacitive touch all-in-one 3E series includes HDMI,VGA, COM,MIC,LAN,USB,DCIN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The 3E uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.
Function And Structure

3E adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 3E uses an industrial plastic front shell,industrial black metal frame,durable and reliable .

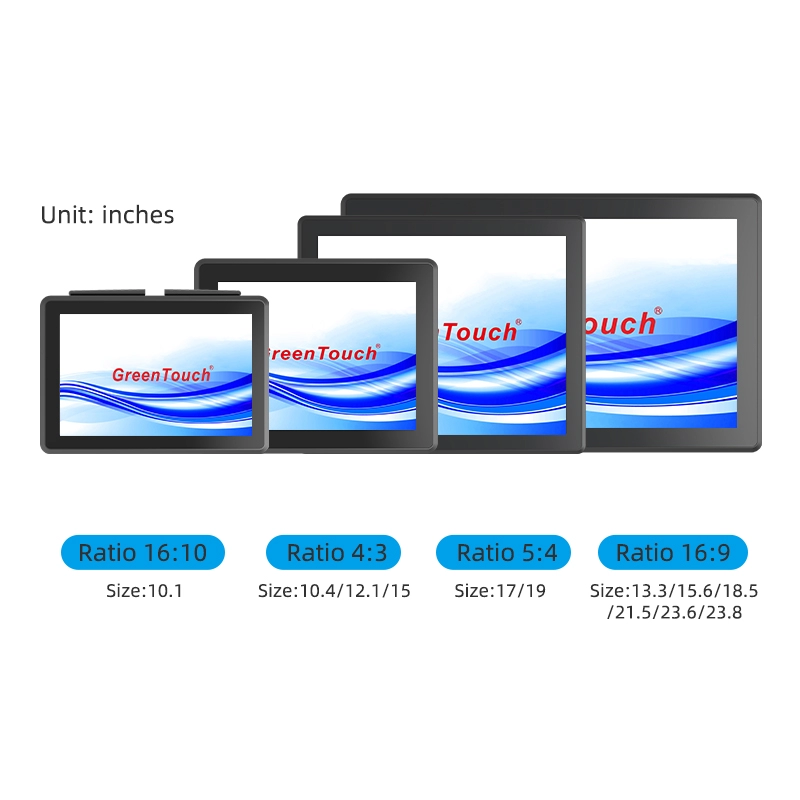

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 5:4) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.6”,23.8”

Mounting Options

Embedded

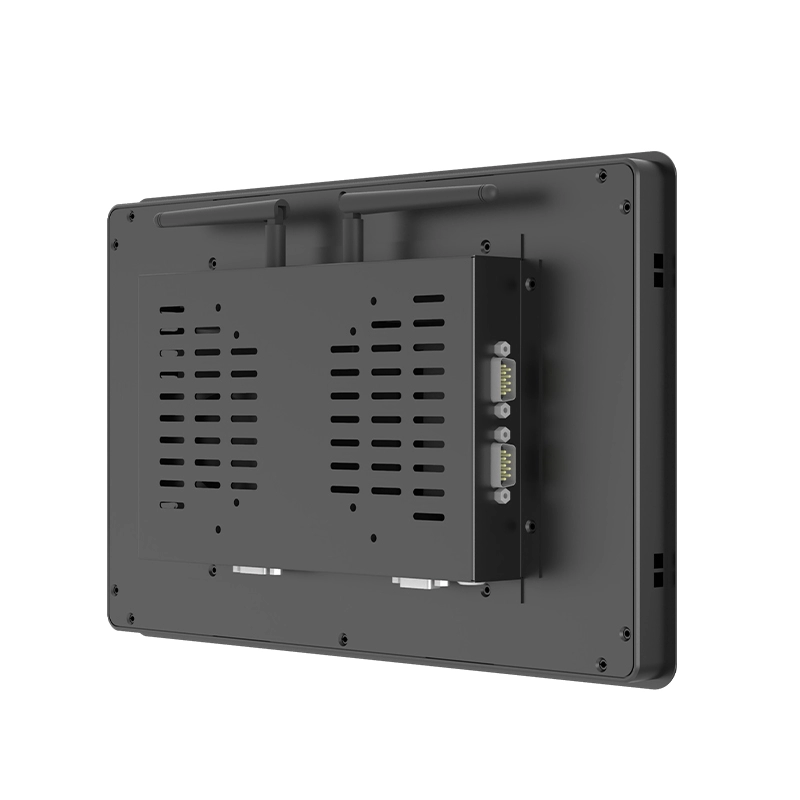

The 3E series touch panel pc feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.

Wall Mount

The touch display includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3E is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(3E Series) Regular Sizes:10.1″,10.4″,12.1″,13.3″,15″, 15.6″,17″,18.5″,19″,21.5″,23.6″,23.8″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:9.7 to 27 inches Resolution:1920×1080,1280×800, 1366×768,1024×768 @60Hz Aspect Ratio:16:9,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:Metal plate adapter bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK06 impact resistance

About Display Ports

Windows:VGA+HDMI
