Closed Frame Touch Panel PC 9.7-27 Inches(3A Series)

Product Information

Processor: Intel® Core™ i3/i5/i7 Options

RAM:2-8GB,SSD:32-256G,HDD:500G-1T

Wide temperature range:-20℃-70℃

Mounting: Wall-mounted,Desktop,Embedded

Customizable:Camera,Type-C,Size,Logo,Color,Casing,Packaging

Features

● Tablet Design,smooth lines,available in silver and black

● High-speed gigabit Ethernet port, built-in wireless WIFI

● Industrial-grade LCD panels for long operating life

● IP65 and front protection to resist water and dust

● The visual effect is better under the sun

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

3A Touch Panel PC Overview

GreenTouch touch panel PC 3A series with Intel® Core™ i3/i5/i7 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 7″ to 27″ provides a versatile and future-ready solution for industrial or Commercial computing. They are suitable for self-service ordering /cashier, shopping mall guides and interactive displays,medical self-service terminals, government queuing machines, transportation ticketing machines, intelligent building access control and digital signage advertising display, production line human-machine interface, workstation display board or workstation terminal, etc.
Configuration and Connectivity

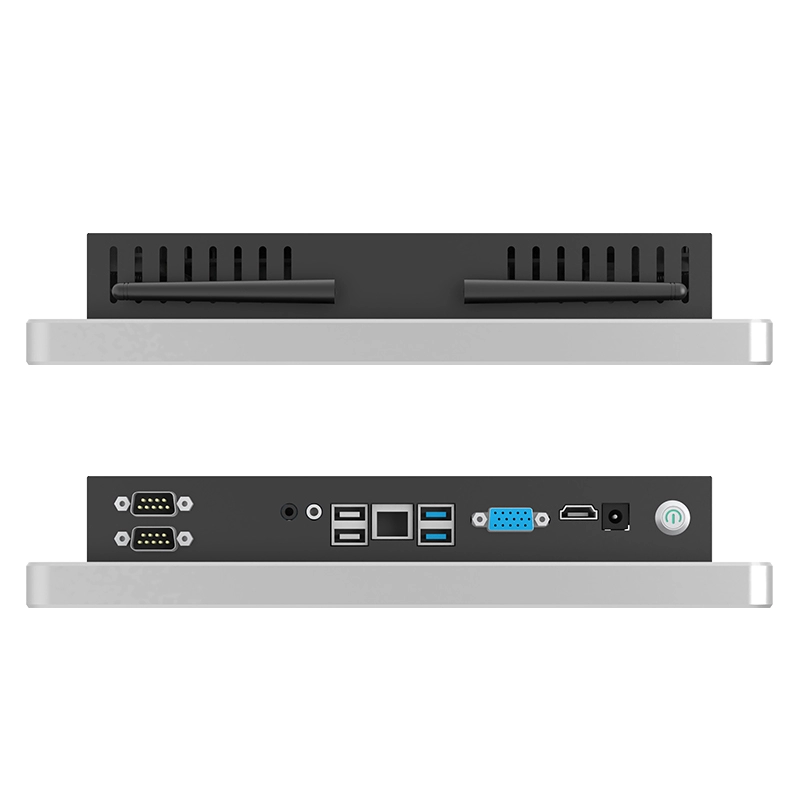

The GreenTouch capacitive touch all-in-one 3A series includes HDMI,VGA, COM,MIC,LAN,USB,DC IN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward , allowing for easy installation in any scenario. The 3A uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.
Function And Structure

3A adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch, sensitive sensing,accurate fixed point. This model features an industrial aesthetic design, with an aluminum alloy frame and an aluminum alloy painted back cover, combining functionality, technology, and materials,available with black or silver trim.
Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:8”,9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”

Mounting Options

Embedded

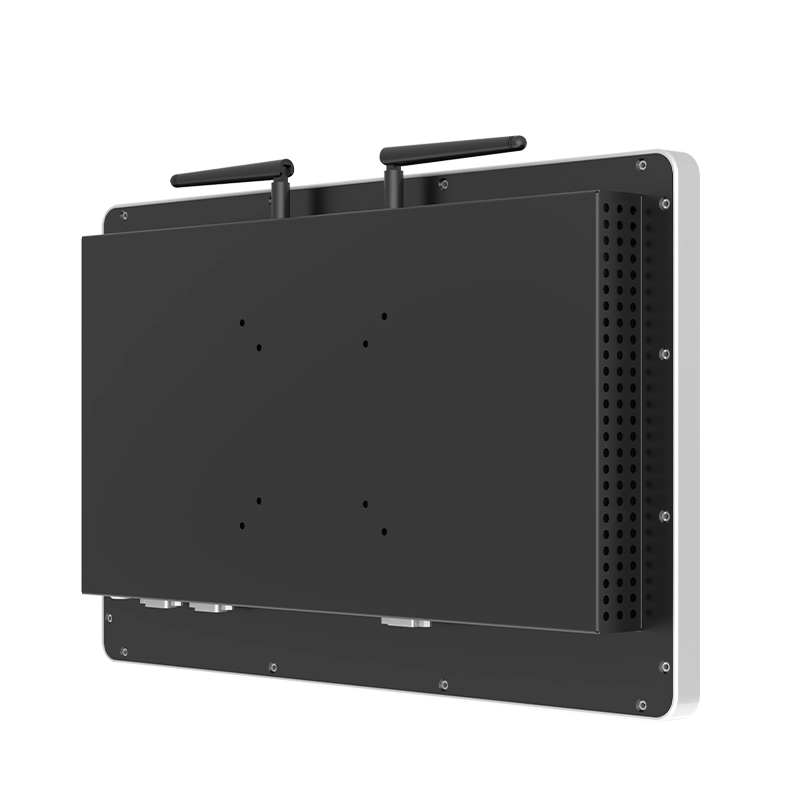

3A touch panel PC is equipped with the VESA (100mm x100mm) or (75mm x 75mm) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor’s VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.

Wall Mount

The 3A includes a universal 100/75mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touch screen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(3A Series) Regular Sizes:9.7″,10.1″,10.4″,12.1″,13.3″,14″,15″, 15.6″,17″,18.5″,19″,21.5″,22″,23.6″,23.8″,27″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7,Intel J1900 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:9.7 to 27 inches Resolution:1920×1080,1680×1050,1280×800, 1366×768,1024×768,800×600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:Metal plate adapter bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK06 impact resistance

About Display Ports

Windows:VGA+HDMI
