Open Frame Touch Panel PC 9.7-55 Inches(2C Series)

Product Information

Processor: Intel® Core™ i3/i5/i7,Intel J1900 Options

RAM:2-8GB,SSD:32-256G,HDD:500G-1T

Wide voltage range: 9-36 V

Wide temperature range: -20℃-70℃

Mounting: Embedded,Wall-mounted,Desktop

Features

● Long lifecycle,industrial strength with tailored integration

● IP65 and front protection to resist water and dust

● High-speed gigabit Ethernet port, built-in wireless WIFI

● EMC anti-interference and explosion-proof IK08

● Dense ventilation holes for reliable 24/7 operation

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

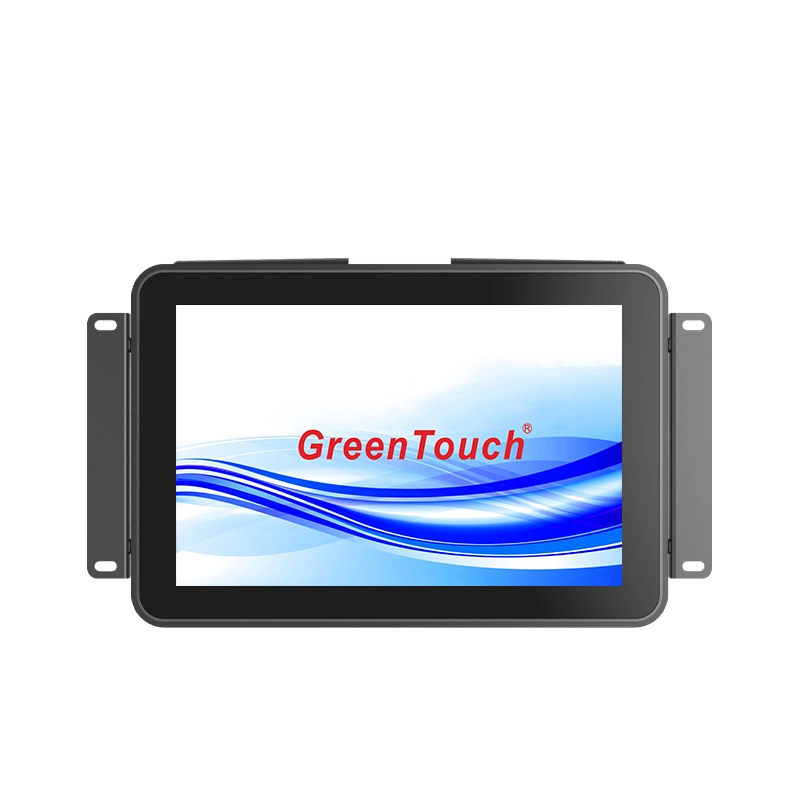

2C Touch Panel PC Overview

GreenTouch touch panel PC 2C series with Intel® Core™ i3/i5/i7/J1900 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 7″ to 55″ provides a versatile and future-ready solution for industrial computing. They are suitable for smart manufacturing and production lines, smart retail and catering, healthcare and wellness, smart logistics, smart control and security, and digital signage and inquiry.
Configuration and Connectivity

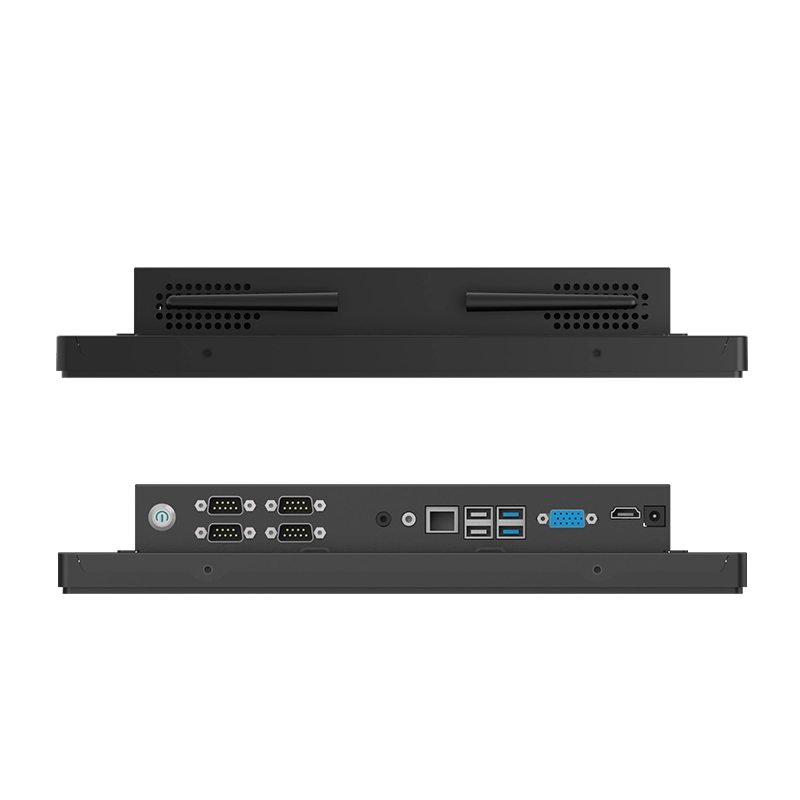

The GreenTouch capacitive touch all-in-one 2C series includes HDMI,VGA, COM,MIC,LAN,USB,DCIN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward,allowing for easy installation in any scenario. The 2C uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.
Function And Structure

2C panel pc adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,Unique 3.5mm low-profile raised edge design,durable and reliable .

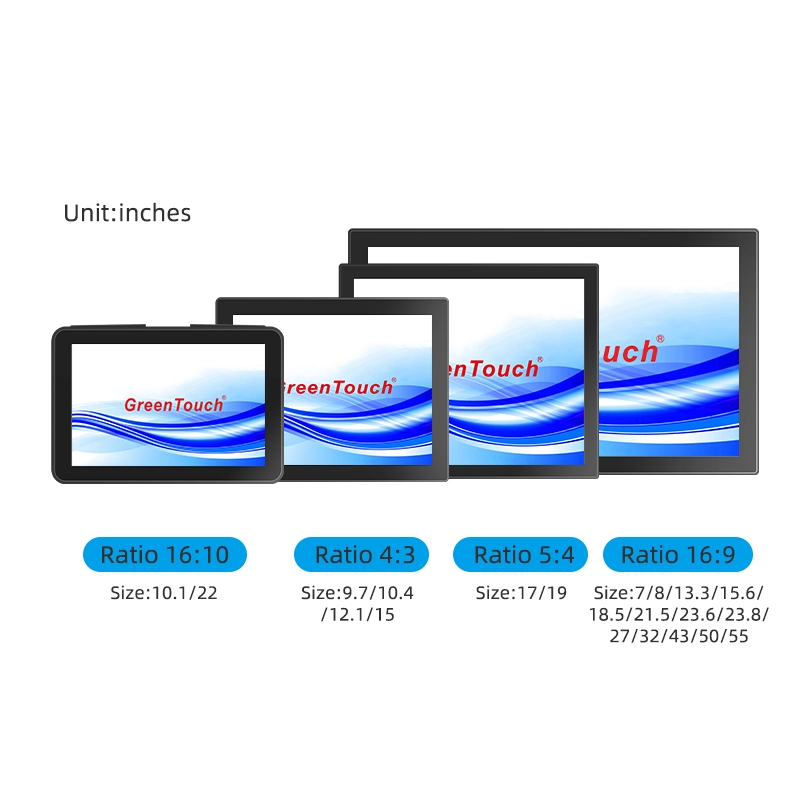

Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”,32”,43”,50”,55”

Mounting Options

Embedded

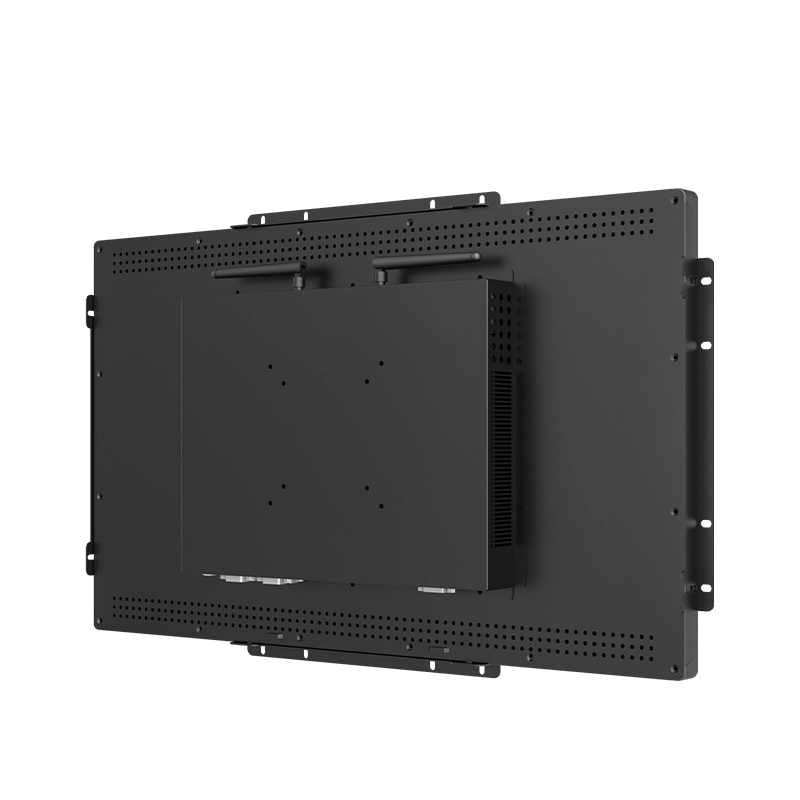

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The touch panel includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2C panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(2C Series) Regular Sizes: 9.7″,10.1″,10.4″,12.1″,13.3″,14″,15″, 15.6″,17″,18.5″,19″,21.5″,22″,23.6″,23.8″,27″,32″,43″,50″,55″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7,Intel J1900 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:8 to 55 inches Resolution:1920×1080,1680×1050,1280×800, 1366×768,1024×768,800×600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100×100/200×100/400x400mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK08 impact resistance

About Display Ports

Windows:VGA+HDMI
