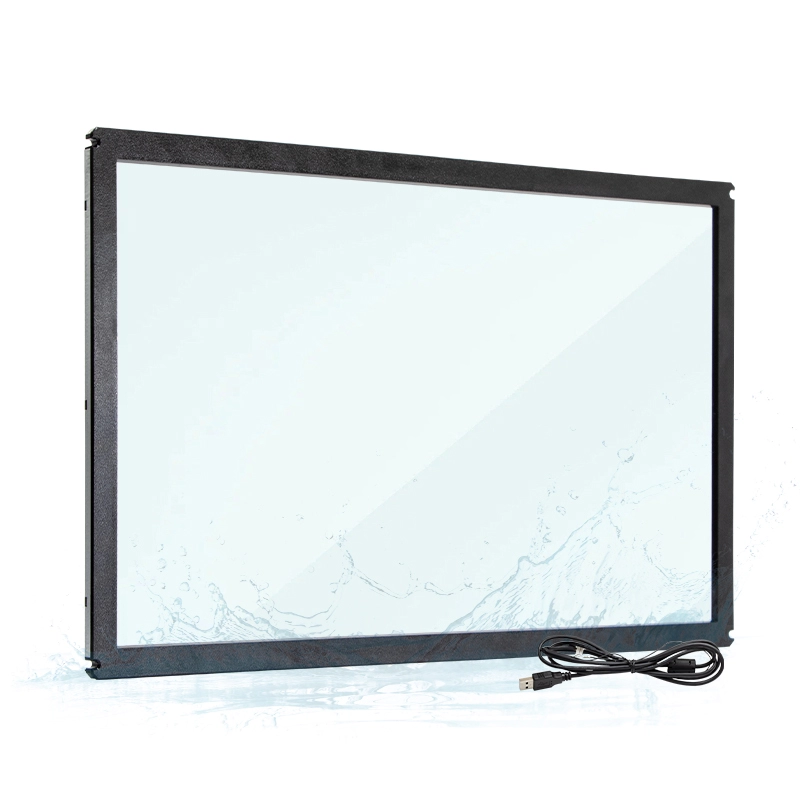

Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)

Product Information

Touch Technology:10-point infrared for precise touch

Material: Aluminum alloy frame + tempered glass panel

Support Systems:Windows,Android,Linux

Customization: Logo,size,border color/material,AG/AR/AF

Features

●USB interface,plug and play,free of driver

●IP65 waterproof and dustproof,Suitable for outdoor

●Full-angle light resistance,anti-light 8000Lux

●3mm tempered glass coverage,High explosion protection

●Level 3 anti-static: with EN 6100-4-2 2008

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Application Field

Product Description

TE Infrared Touch Screen Overview

GreenTouch’s TE series of 15-inch,17-inch,19-inch,and 21.5-inch infrared glass touchscreens offer a perfect solution for industries requiring outdoor touch control,thanks to their waterproof,dustproof,and explosion-proof features,adaptability to harsh outdoor environments,and flexible touch operation. These ir touchscreens are widely used in vending machines,outdoor smart charging stations,outdoor advertising kiosks,outdoor information kiosks,self-service parcel lockers,and other outdoor waterproof equipment.

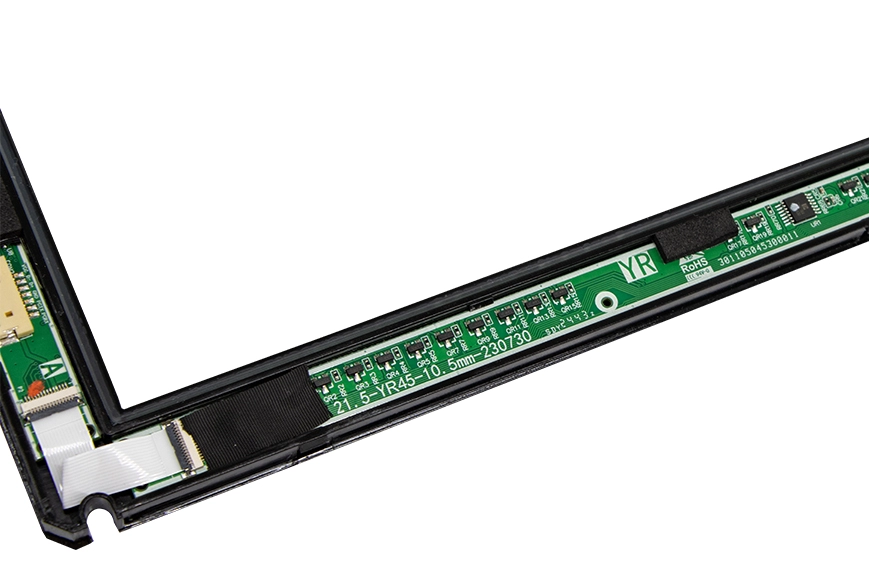

Function And Structure

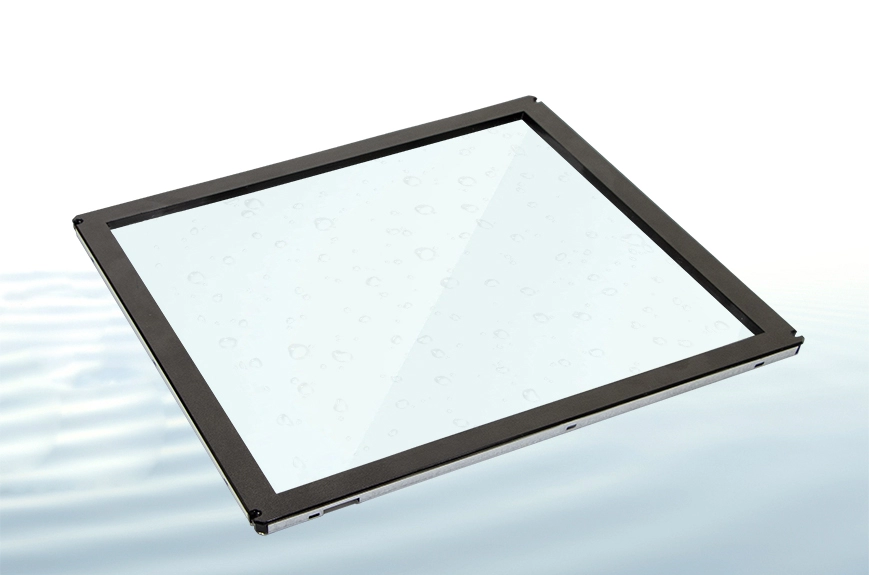

Our TE series waterproof infrared touchscreen adopts a structure of one-piece injection-molded light-transmitting frame + waterproof adhesive + mechanized glass bonding process, with an ultra-narrow bezel thickness of only 8mm.It achieves IP65 waterproof and dustproof rating, can withstand prolonged exposure to sun and rain, and is resistant to light from all angles, allowing normal operation of the touch function even under strong light.

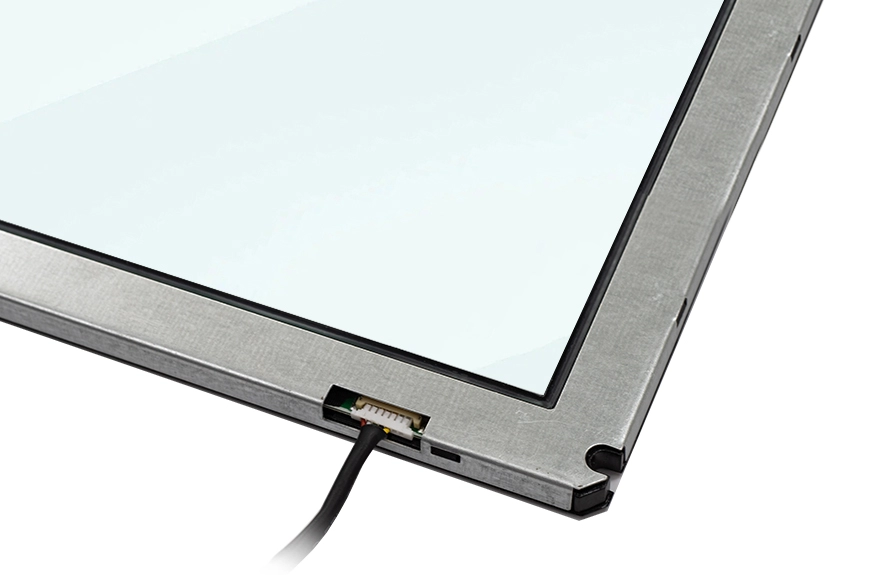

Connections and Systems

Connecting the infrared screen is very simple, using a USB 2.0 full-speed interface, it’s plug and play.They adopt aluminum alloy plug,free of driver.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch IR touch frame excel in system compatibility, with their core advantage lying in “driver layer adaptation,” enabling compatibility with almost all mainstream consumer and commercial operating systems, such as Windows,Android,Linux
Multiple sizes available

(Ratio 4:3)Size:10.4”,12.1”,15”

(Ratio5:4)Size:17”,19”

(Ratio16:19)Size:21.5”

Mounting Options

Install the TE infrared touch screen as follows:

1. Open the packaging and remove the infrared screen.
2. Connect the USB to the main unit and check if the signal graph is marked with a checkmark.
3. Attach the double-sided tape to the back.
4. Align the screen with the viewing window and attach the tape.
5. Installation complete.

Specifications

General Manufacturer:GreenTouch Product Name:Infrared Touch Screen (TE Series) Regular Sizes:10.4″,12.1″,15″,17″,19″,21.5″ Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Black Frame(With glass) Material:Black Aluminium Frame+Glass Diagonal Size:10.4 to 21.5 inches Aspect Ratio:4:3,5:4,16:9 Touch Resolution:32768 x 32768 Response Speed:<10ms Touch Technology:IR Touch 10 Points Touch Object:>7mm In Diameter Touch Support System:Windows,Android,linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity: 90% relative humidity,no condensation

Connectivity Interface:USB,plug an play

Compliance Certifications: CE,FCC,RoHS Performance:No interference,anti-ligh
