Infrared Touch Frame 27 to 98 Inches(TB Series)

Product Information

Touch Resolution:32768 x 32768

Touch Points:Multi Touch 20 Points

Support Systems:Windows,Android,Linux

Certificates:CE,FCC,RoHS

Features

●USB 2.0 full speed interface,plug and play,free of driver

●Sunlight-resistant,operable indoor and outdor

●Sensitive touch,no disconnection,no ghosting or drift

●High immunity to electical interference

●LED tube core,stable performance,60,000-hour lifespan

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Application Field

Product Description

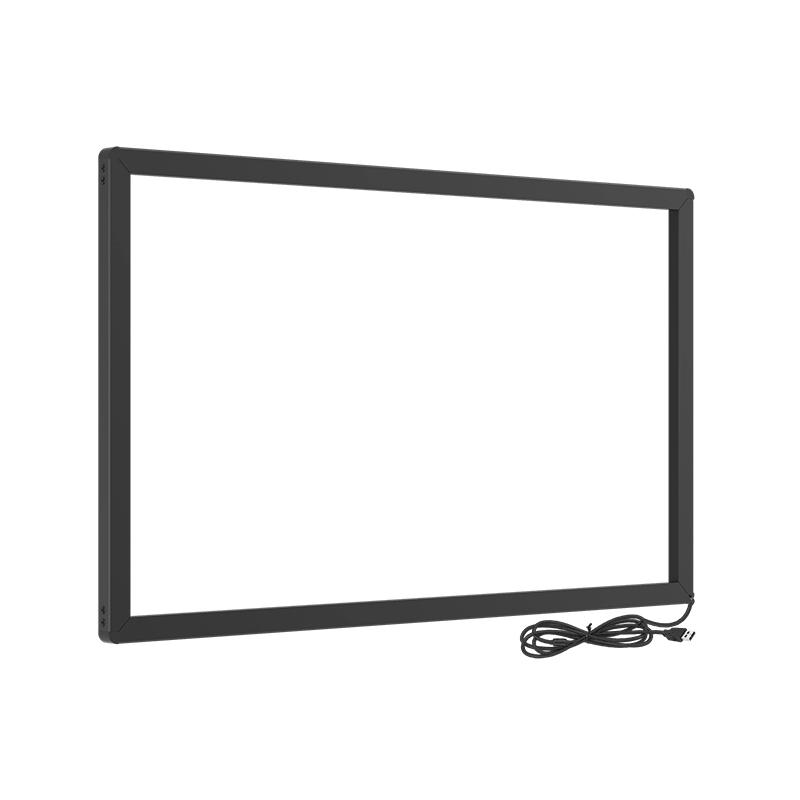

TB Infrared Touch Frame Overview

GreenTouch’s IR touch frame TB series provides cost-effective solutions for customers who need large size touch.A comprehensive size range from 27 ”to 300” ensures compatibility with:education and training,commercial presentations and advertising, public information access and services,industrial control and automation, entertainment and games
Function And Structure

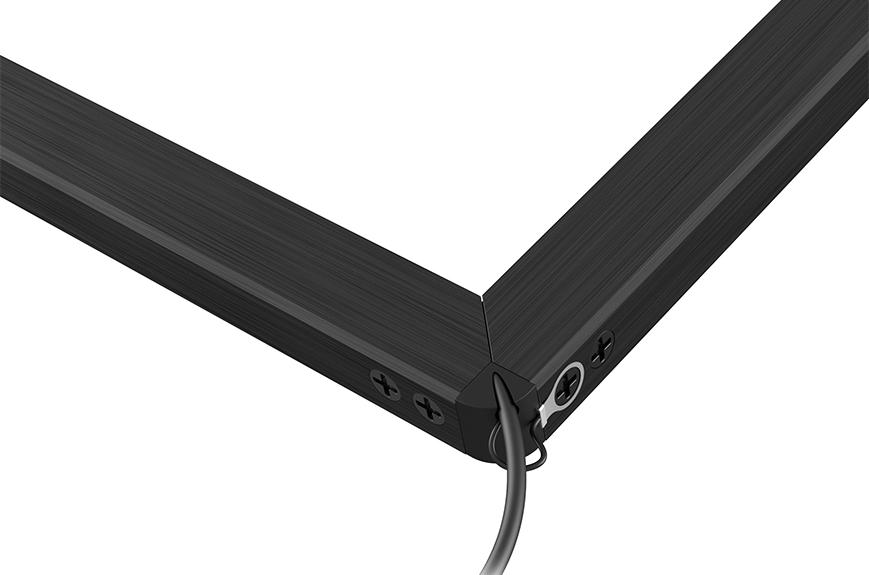

Our TB IR touch frame bezel boasts a streamlined design and superior craftsmanship, with a shell thickness of only 14mm. They adopt Aluminum alloy shell,strong,durable,not rusty.The surface adopts black brushed sandblasting process,which is not easy to fall off and lose color.TB use advanced chip,LED infrared receiving tube life time 60000 hours and stable performance.
Connections and Systems

Connecting the infrared frame is very simple, using a USB 2.0 full-speed interface, it’s plug and play.They adopt aluminum alloy plug,free of driver.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch IR touch frame excel in system compatibility, with their core advantage lying in “driver layer adaptation,” enabling compatibility with almost all mainstream consumer and commercial operating systems, such as Windows,Android,Linux
Multiple sizes available

Standard sizes

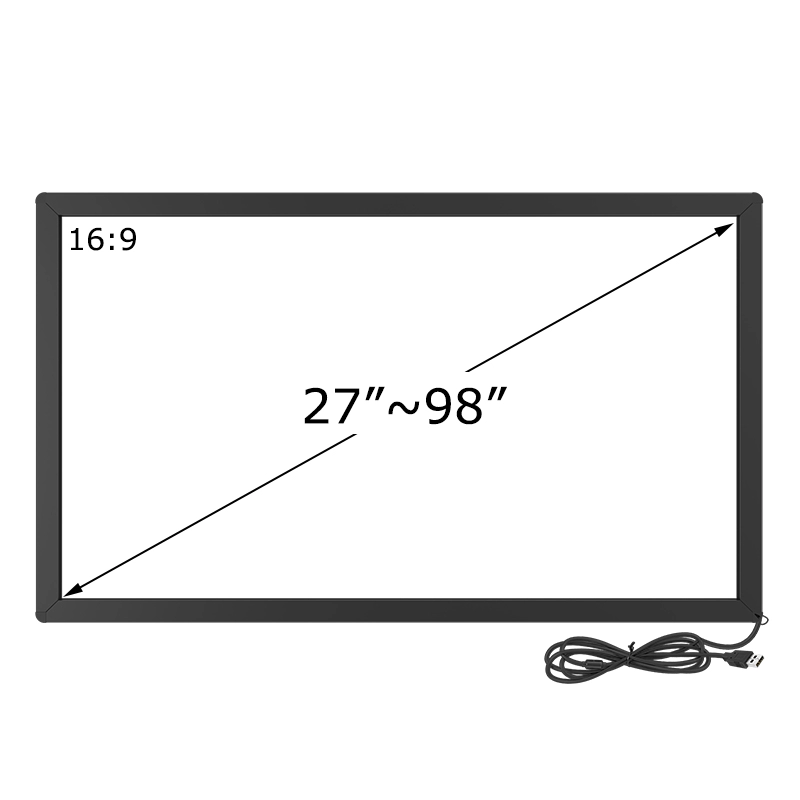

27”,32”,37”,39”,40”,42”,43”,46”,47”,49”,50”,55”,58”,60”,65”,69.5”,70”,75”,80”,82”,84”,85”,86”,98”
Custom sizes
98 to 500 inches

Mounting Options

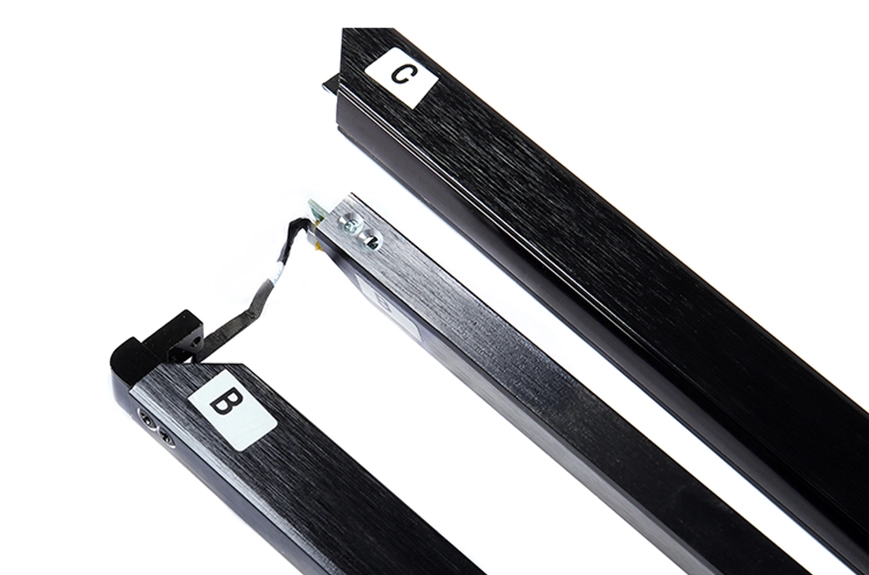

The infrared touch frame TB series is composed of four infrared touch frame strips. When youreceive the product, you need to correctly connect the AA, BB, CC, DD corresponding sidestrips according to the instructions, and you need to ensure that the cable Fasten the safetybuckle after fully contacting the connecting PIN socket, so that each contact point of the cablehas good conductivity, the unique plug-in installation is simple and easy to operate.After the installation is complete, plug in the USB, please wait for 10 seconds for thetouch test (during testing, pay attention to laying flat)

Specifications

General Manufacturer:GreenTouch Product Name:Infrared Touch Frame(TB Series) Regular Sizes:27”,32”,37”,39”,40”,42”,43”,46”,47”,49”,50” ,55”,58”,60”,65”,69.5”,70”,75”,80”,82”,84”,85”,86”,98” Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Black Frame(No glass) Material:Black Aluminium Frame Diagonal Size:27 to 98 inches Aspect Ratio:16:9 Touch Resolution:32768 x 32768 Response Speed:<10ms Touch Technology:IR Touch 20 Points Touch Object:>7mm In Diameter Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity:90% relative humidity,no condensation

Connectivity Interface:USB,plug and play

Compliance Certifications: CE,FCC,RoHS Performance:Anti-light interference
