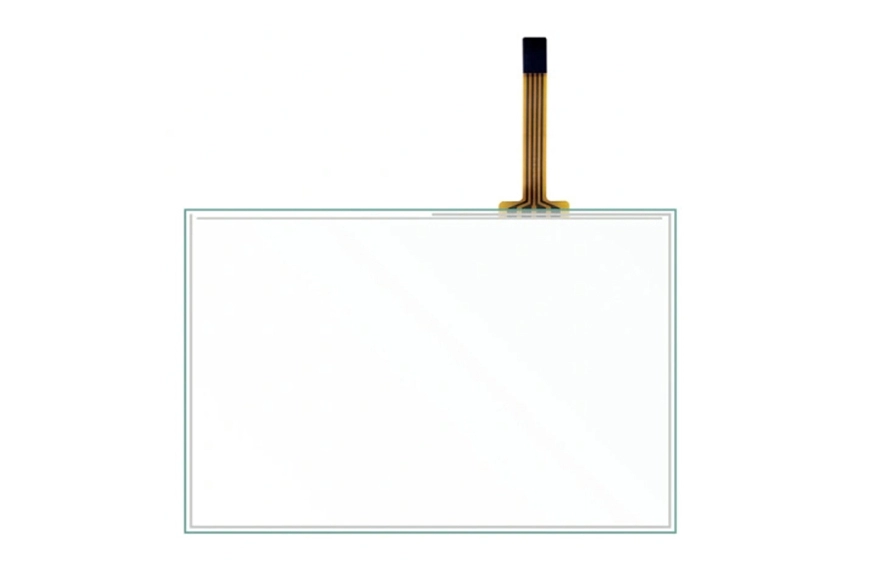

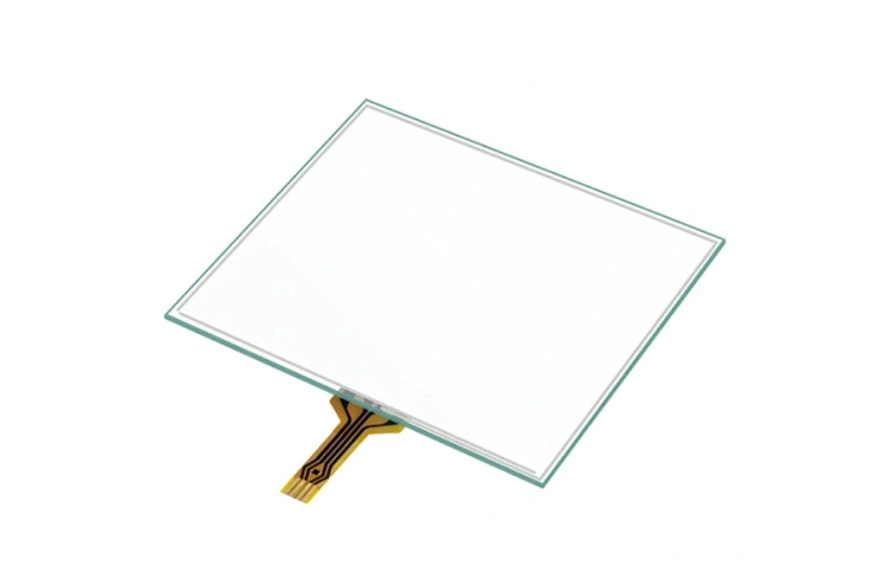

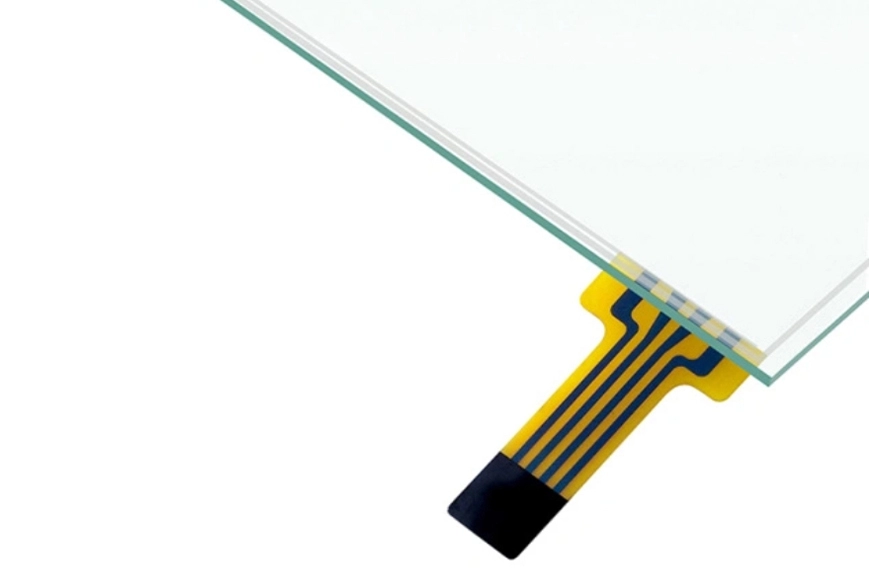

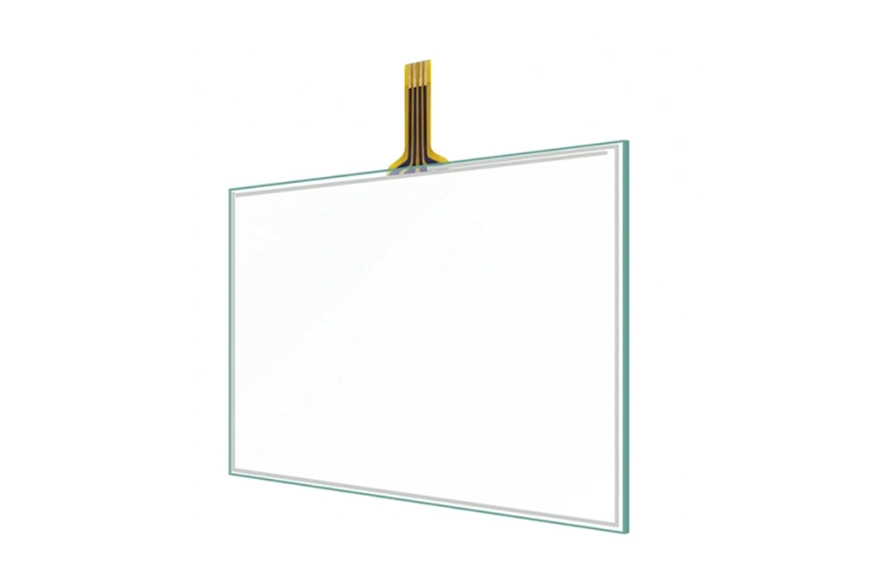

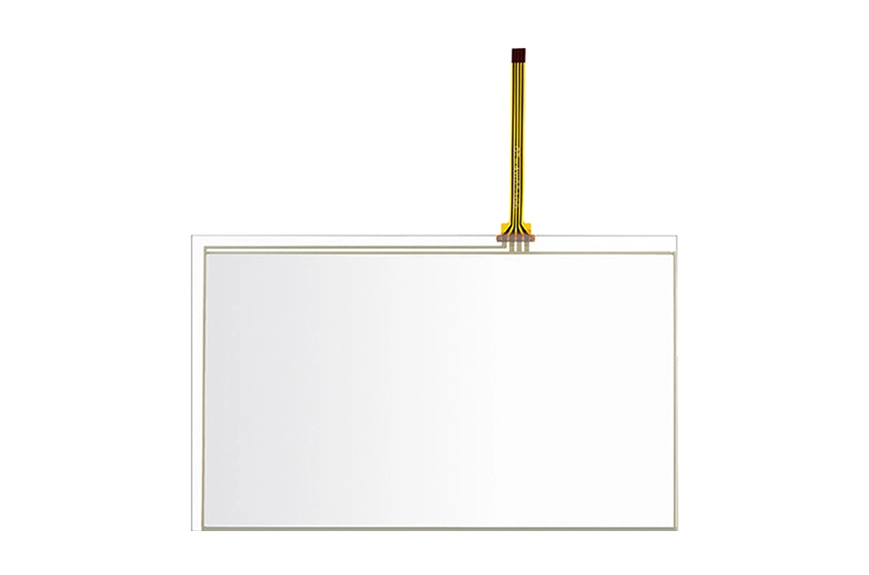

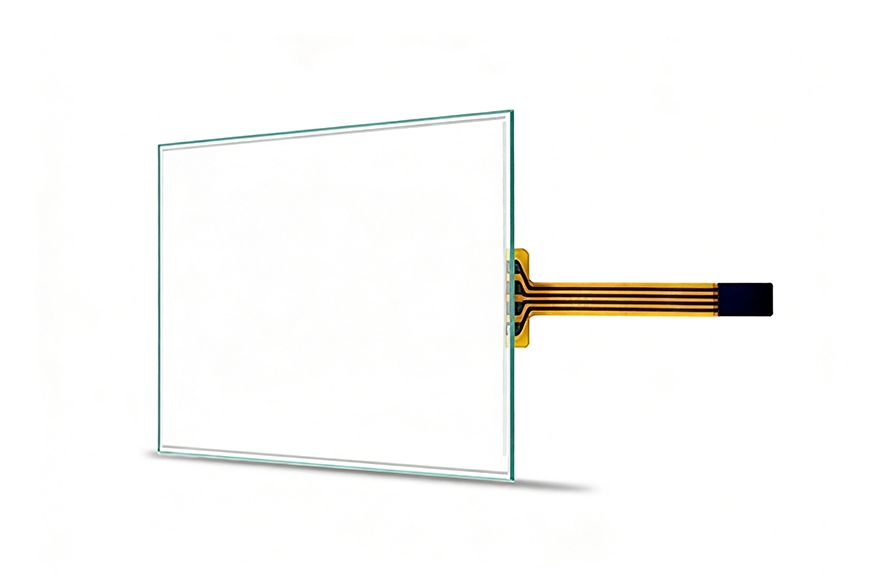

Resistive Touch Screen 2.7 to 10.1 Inches(4 Wire)

Product Information

Resolution:4096×4096

Life Time:1.000.000 times

Product Structure:ITO Film+ITO Glass

ITO Film+ITO Film

Certificates:CE,FCC,RoHS

Features

● Light touch, no drift, no calibration and high stability

● Can be sealed against contamination,support NEMA 4/4x/12.

● Can meet the pencil hardness 3H per ASTM D3363

● Use mist hard coating & anti-newton rings,prevent scratches

● Own class 1,000 clean room,full inspection,fast delivery

Get a quote

Online Consultation

Product Description
Customization Options
Specifications
Application Field

Product
Description

Small Size 4 Wire Touch Screen Overview

GreenTouch’s small-sized (2.7 to 10.1 inches) four-wire resistive touchscreens
have secured a strong position in several fields with specific requirements for reliability, cost, and
environmental adaptability, thanks to their unique technological features. They are compatible with
industries such as: Handheld industrial terminals, small control panels, logistics barcode scanning
devices, equipment control interfaces, handheld diagnostic devices, portable monitors, vehicle-mounted
information terminals, small self-service inquiry terminals, handheld ordering devices, etc.
Function And Structure

Our resistive touch panel with pure plane structure,excellent craftsmanship,slim
and smooth design,total thickness about 2.3mm.And use stable IC and bonding equipment to maintain high
yield and quality.They are produced using mature technology, are inexpensive, and have strong
anti-interference capabilities. And entirely on single-point contact with physical pressure and are
unaffected by environmental pollutants such as water, oil, dust, and moisture.
Connections and Systems

The steps to connect the resistive touchscreen as follows: 1. Connect the
rainbow cable (extension cable) to the driver board,2. Connect the rainbow cable (extension cable) to
the touchscreen cable,3. Connect the driver board to the USB cable.GreenTouch four-wire resistive
touchscreens are compatible with Windows, Android, and the Linux system. Their “simple, stable, and
low-cost” characteristics are highly compatible with the core needs of embedded systems, industrial
control, and other fields.Achieve seamless compatibility.
Multiple sizes available

(Ratio 16:39)
Size:2.7”,4.3”,6.2”,7”,9”,10.1”
(Ratio 4:3)
Size:5.7”,6”,6.5”,9.7”

Customization Options

GreenTouch 4 wire resistive touch screens can be customized in terms of appearance,
electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet
location,packaging,ITO glass thickness,matte anti-newton ring,anti-glare finish,smooth
finish，controllers and Interfaces,high temperature,high humidity,anti-UV etc

Specifications

General Manufacturer:GreenTouch Product Name:4 Wire Resistive Touch Screen Regular Sizes:2.7″,4.3″,5.7″,6″,6.5″,7″,9″,9.7″,10.1″ Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:ITO Film+ITO Glass/ITO Film+ITO Film Surface Hardness:≥3H Diagonal Size:2.7 to 10.1 inches Aspect Ratio:16:9,4:3 Resolution:4096 x 4096 Response Speed: <10ms Touch Technology:Resistive Single touch Control Interface: USB or RS232,I2C Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity:90% relative humidity,no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS
