Resistive Touch Screen 10.4 to 22 Inches(4 Wire) – Jiaxing Zhengguang Intelligent Co., Ltd

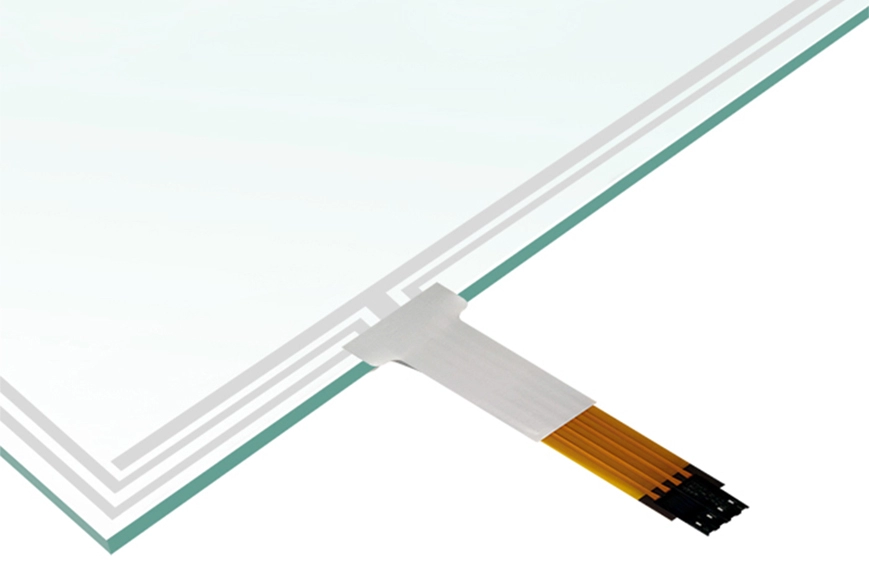

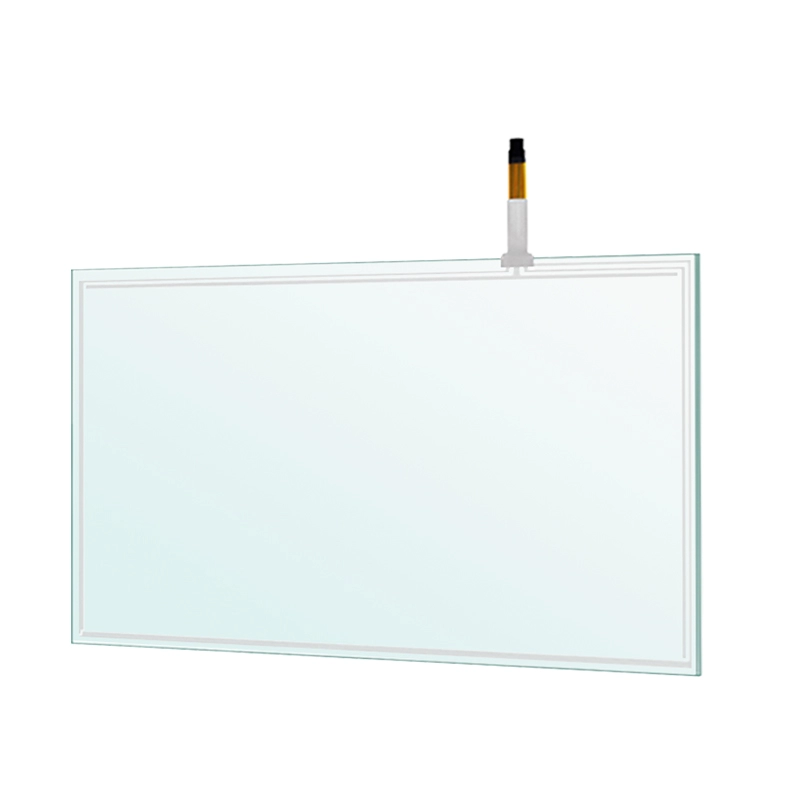

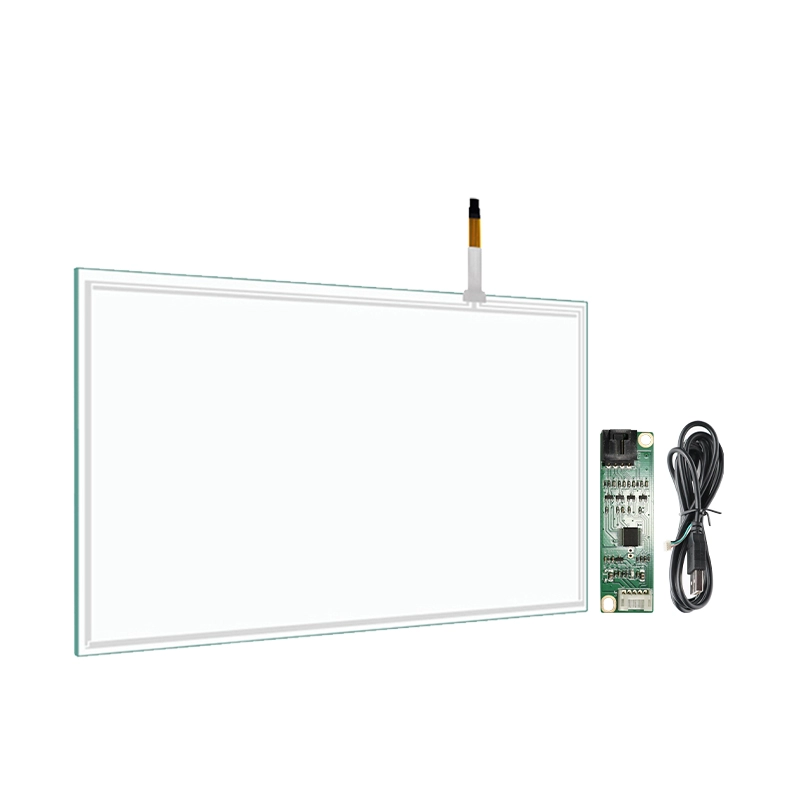

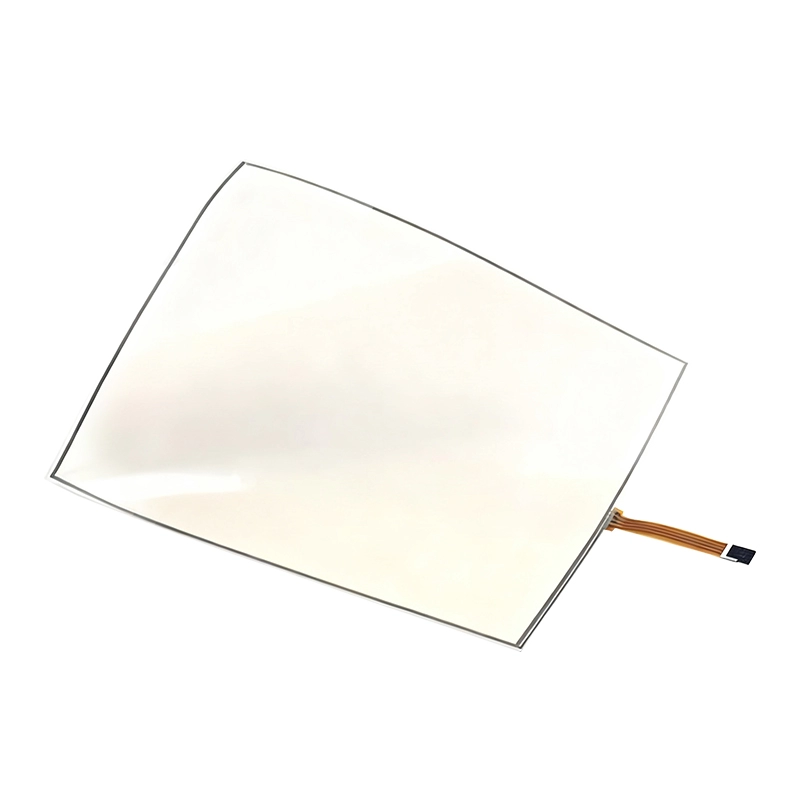

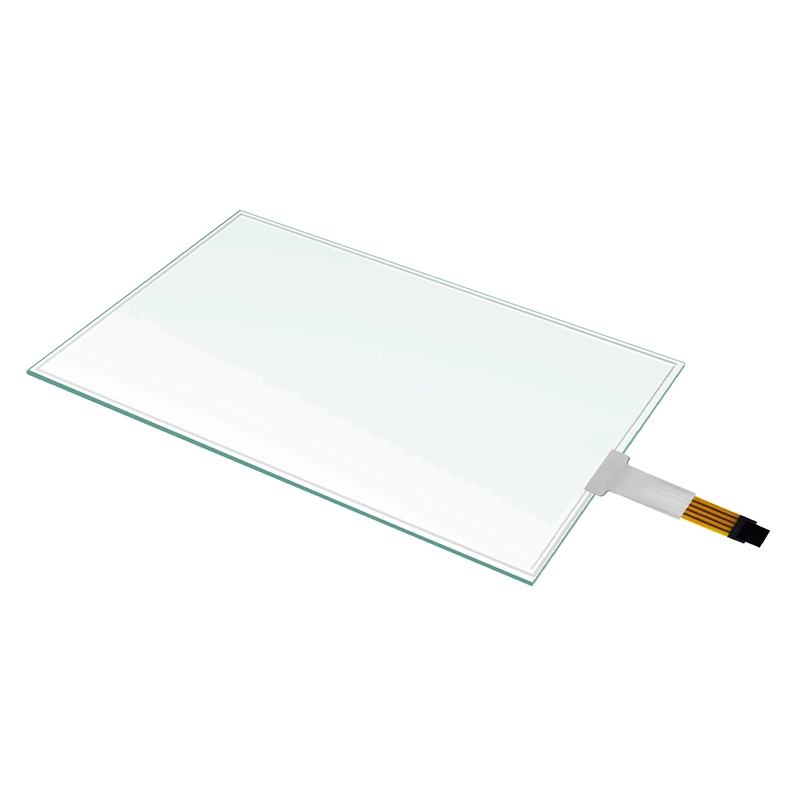

Resistive Touch Screen 10.4 to 22 Inches(4 Wire)

Product Information

Resolution:4096×4096

Life Time:1.000.000 times

Product Structure:ITO Film+ITO Glass

ITO Film+ITO Film

Certificates:CE,FCC,RoHS

Features

● Light touch, no drift, no calibration and high stability

● Can be sealed against contamination,support NEMA 4/4x/12.

● Can meet the pencil hardness 3H per ASTM D3363

● Use mist hard coating & anti-newton rings,prevent scratches

● Own class 1,000 clean room,full inspection,fast delivery

Get a quote

Online Consultation

Product Description
Customization Options
Specifications
Application Field

Customization Options

GreenTouch 4 wire resistive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness,matte anti-newton ring,anti-glare finish,smooth finish，controllers and Interfaces,high temperature,high humidity,anti-UV etc

Specifications

General Manufacturer:GreenTouch Product Name:4 Wire Resistive Touch Screen Regular Sizes:10.4″,12.1″,13.3″,14″,15″,15.6″,17″, 17.3″,18.5″,19″,21.5″,22″ Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:ITO Film+ITO Glass/ITO Film+ITO Film Surface Hardness:≥3H Diagonal Size:10.4 to 22 inches Aspect Ratio:4:3,16:9,16:10 Resolution:4096 x 4096 Response Speed: <10ms Touch Technology: Resistive Single touch Control Interface: USB or RS232,I2C Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity: 90% relative humidity,no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS
