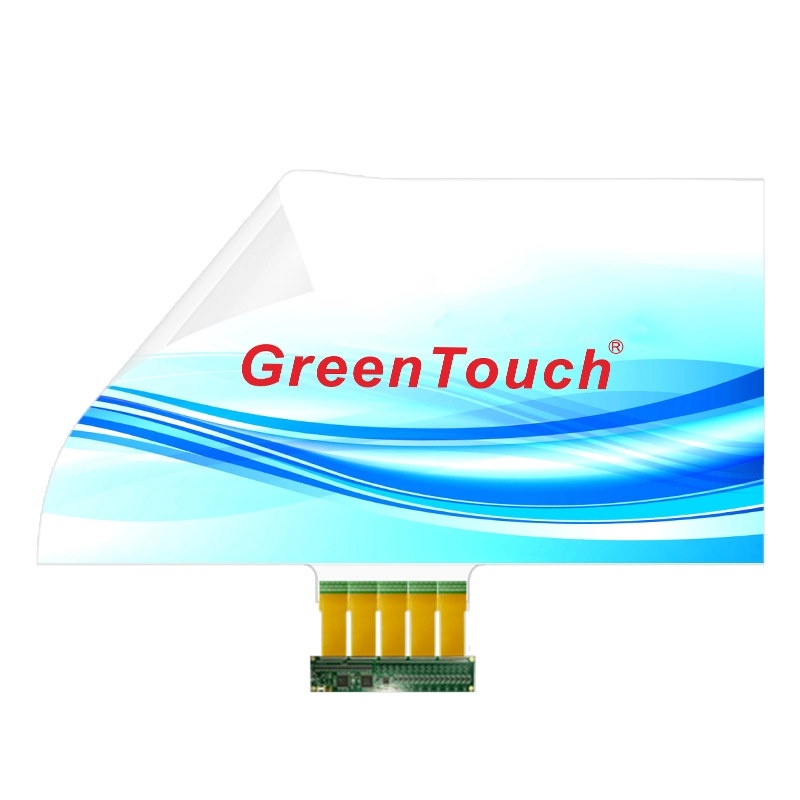

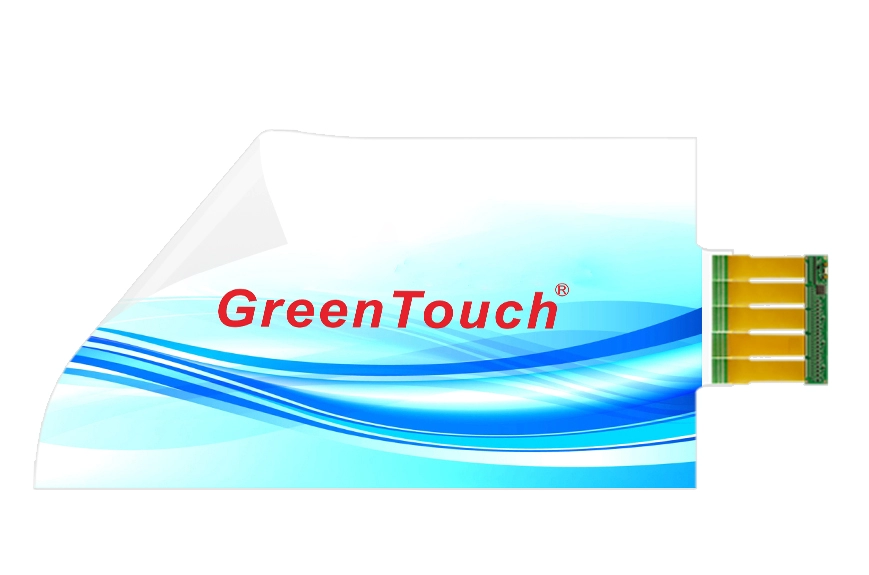

Interactive Touch Foil 43 to 180 Inches(XTC Series)

Product Information

Touch Type: Interactive PCAP,40 Points Touch

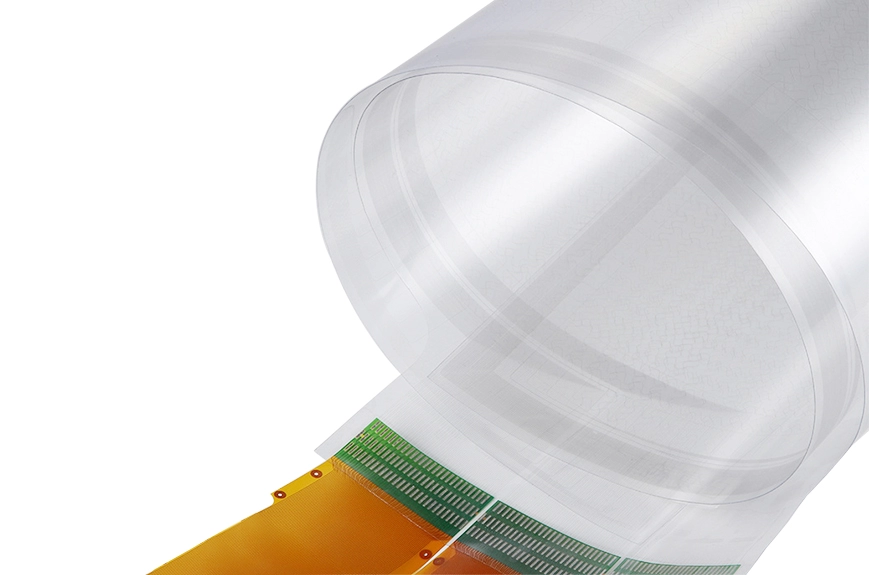

Material: Ultra-thin 0.2mm transparent PET film

Applicable to: glass, acrylic, Polycarbonate

Customizable: Size,Logo,Pasting Services, AG,AF,AR

Packing List:Touch Foil*1,Controller*1,USB Line*1

Features

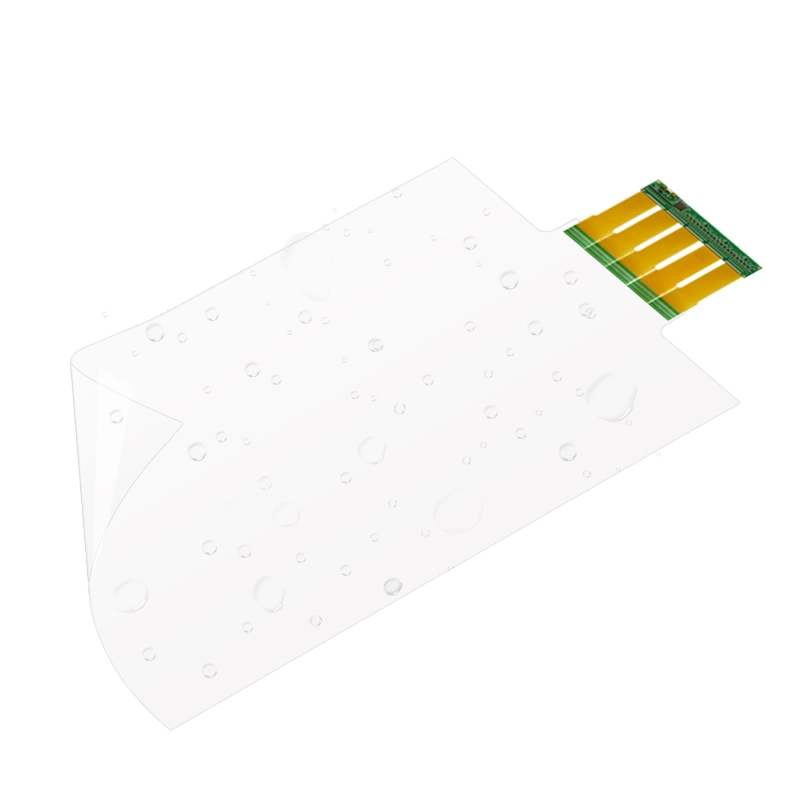

● Waterproof IP67,vandal proof and anti-pollution

● Simple integration process,Cost-effective interactive solution

● Transmittance≥93%,strong penetration,full-angle anti-glare

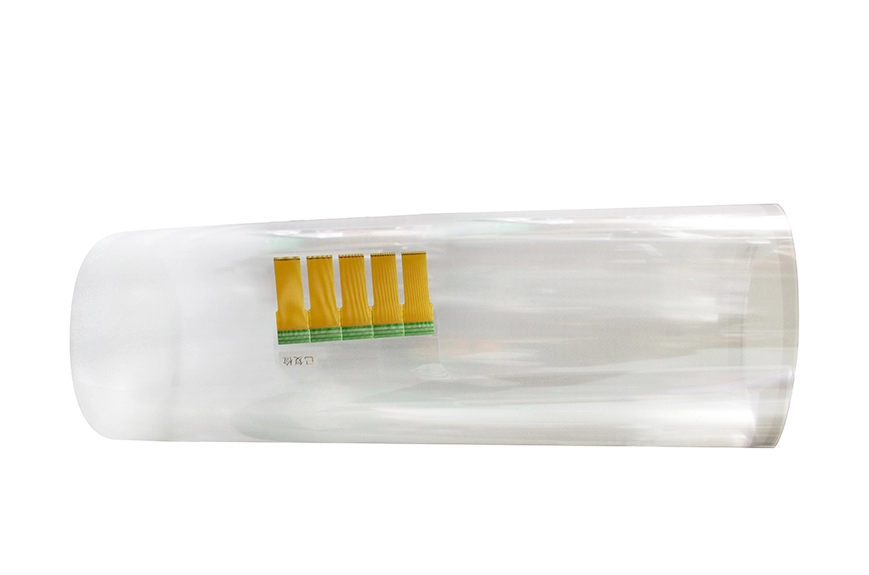

● Can be straight or curved,integrated no frame

● Accurate positioning and touch,strong penetration ability

Get a quote

Online Consultation

Product Description
Mounting Steps
Specifications
Application Field

Mounting Steps

1. Surface Preparation: Ensure the mounting surface (e.g., the back of glass or acrylic sheet) is clean, flat, and dry.
2. Alignment and Adhesion: Peel off the protective layer of the touch film. Align the sensing side (the side with the circuit pattern) with the back of the medium, carefully adhere it, and use a scraper to remove air bubbles to ensure a smooth, wrinkle-free finish.
3. Connecting the Controller: Connect the flexible printed circuit (FPC) end of the touch film to the matching touch control board via the connector.
4. Electrical Connection: Connect the control board to a computer or main control device using a USB data cable.
5. Driver Installation and Calibration: Install the driver on the computer and complete the calibration in the operating system’s “Touchscreen Settings”.

Specifications

General Manufacturer:GreenTouch Product Name: Capacitive Touch Foil(XTC series) Regular Sizes:43”,55”,65”,70”, 75”, 86”,98”,120”,150”,180” Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Film+Film Diagonal Size:43 to 180 inches Aspect Ratio:16:9 Touch Gesture:Click,Drag,Zoom,Rotate Deviation:≤0.5mm Transmittance:≥93% Scanning speed:8ms/frame Sensor:TX80 RX142 Touch Technology:Capacitive 40 touch points Packing List: Touch Foil*1,Controller*1,USB Line*1 Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity: 90% relative humidity, no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS
