Wall-mounted Digital signage 32-65 Inches(6C Series)

Product Information

Resolution:UHD 4K,Full HD 1920×1080

Processor:The RK3568S chip,quad-core ARM Cortex-A55

Systems:Android 9,10, 11,12,13,14

RAM:2-8GB,SSD:32-64G,Support TF Card

Mounting:Wall-mounted,hanging,mobile bracket

Features

● Thin bezel,178 ultra-wide viewing angle

● Display Colors 16.7M,90%NTSC

● Supports single-core,dual-core or quad-core solutions

● Surface treatment: AG(AR,AF,MR Optional)

● Long lifecycle,1-3 years guarantee (24/7 usage)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Application Field

Product Description

6C Digital Signage Overview

GreenTouch 6C series (32”,43”,50”,55”,65”) digital signage is suitable for diverse scenarios such as retail supermarkets, restaurant chains, financial outlets, medical and government services, transportation hubs, campuses, and corporate offices. With high-definition display and intelligent information dissemination system, it realizes integrated information dissemination for brand promotion, sales guidance, information disclosure, wayfinding, queuing, and emergency notification, creating an efficient, accurate, and visual intelligent communication terminal for various industries.
Configuration and Connectivity

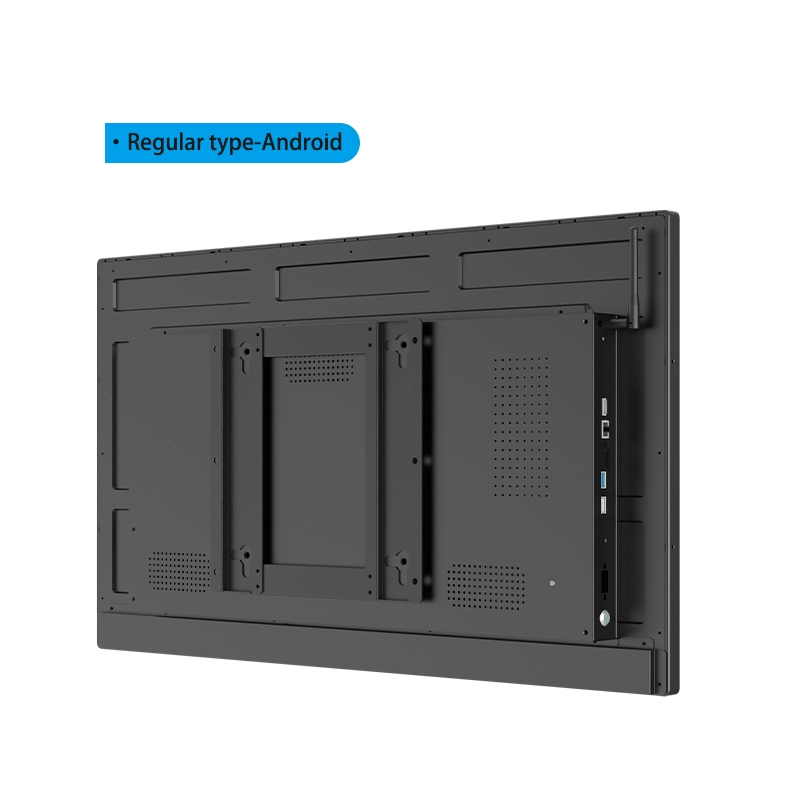

The GreenTouch digital signage 6C series includes HDMI,OTG,TF,POWER,AUDIO,RJ45 and USB ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 6C uses RK3568S chip features a quad-core ARM Cortex-A55 architecture, with a maximum clock speed of up to 2.0GHz,supports RJ45 R/A 100Mbps Ethernet and Ethernet; Supports 2.4GHz Wi Fi and Wi Fi 802.11b/g/n protocol; Supports Bluetooth 4.2 and Bluetooth file transfer.
Appearance and Structure

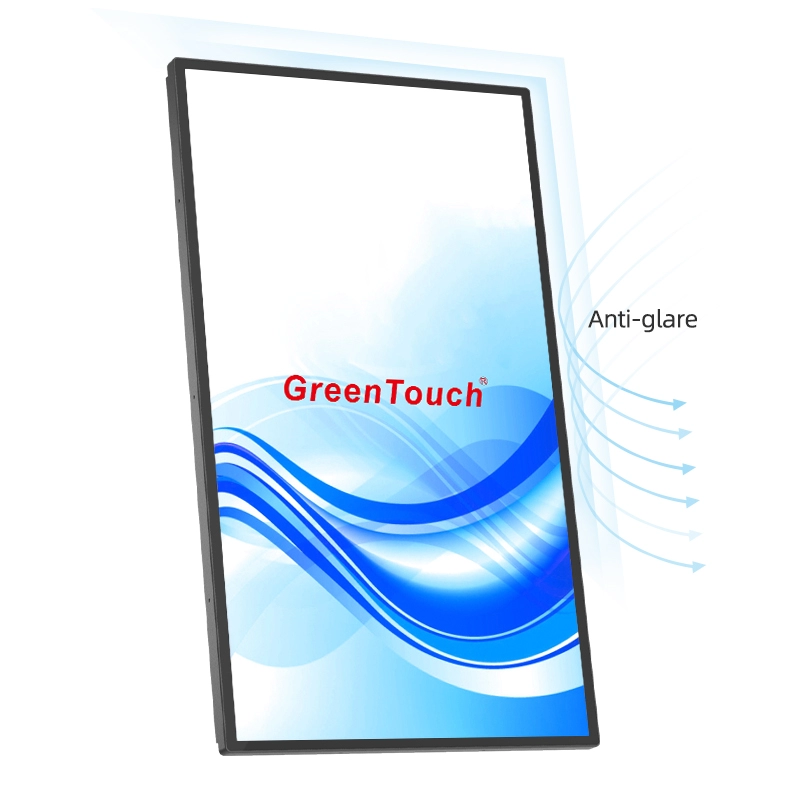

6C digital signage adopt thin bezel design,optically bonded touch panel to LCD panel,and adopting AG anti-glare surface treatment technology. TFT LCD LED backlight, the display color is 16.7M, and the video image is clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruption
Function Support

Timing switch, timing playback ;
Cloud intelligent background can be operated remotely across provinces and cities;

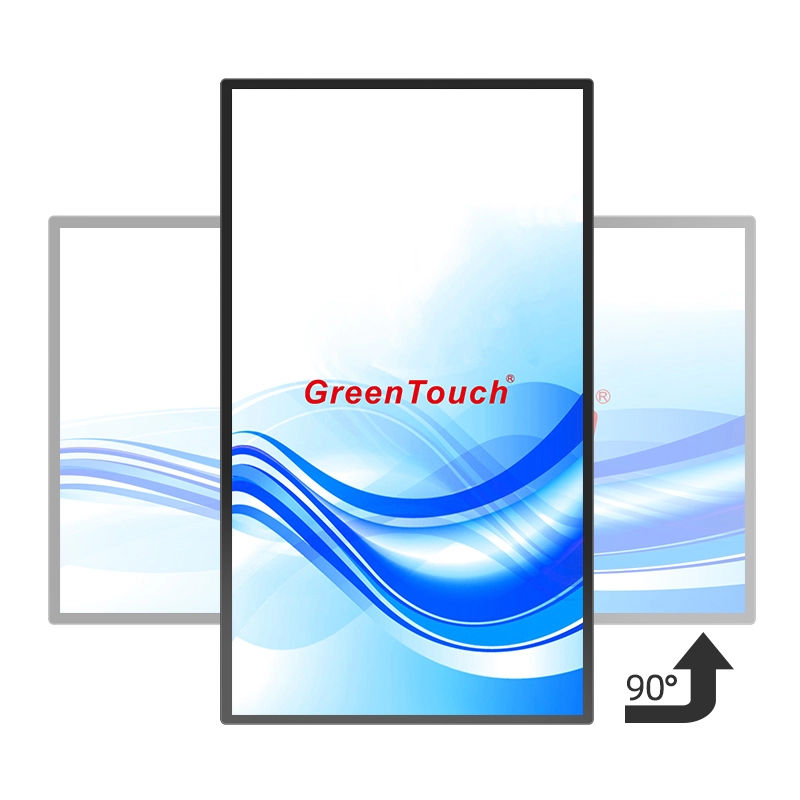

0°/90°/180°/270° manual or automatic rotation;
Combined split-screen playback of pictures and videos;

Mounting Options

Wall-mounted

Hanging

Mobile Brackets

Specifications

General Manufacturer:GreenTouch Product Name:Wall-mounted digital signage(6C Series) Regular Sizes: 32″,43″,50″,55″,65″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,HDMI,CCC

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:32 to 65 inches Resolution:1920×1080,4k @60Hz Aspect Ratio:16:9 Brightness:450,1000 nits

Environmental Continuous Operation:24/7 Operating Temperature:0°C to 50°C Storage Temperature:-20°C to 60°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,OTG,TF,POWER,AUDIO,RJ45,USB

Mounting Embedded:External Bracket Wall Mount:VESA 200×100/400x300mm Hanging:Hanging bracket

Compliance Certifications:CE,FCC,RoHS,CB,HDMI,CCC

Application Field
