Resistive Touch Screen 7 to 22 Inches(5 Wire) – Jiaxing Zhengguang Intelligent Co., Ltd

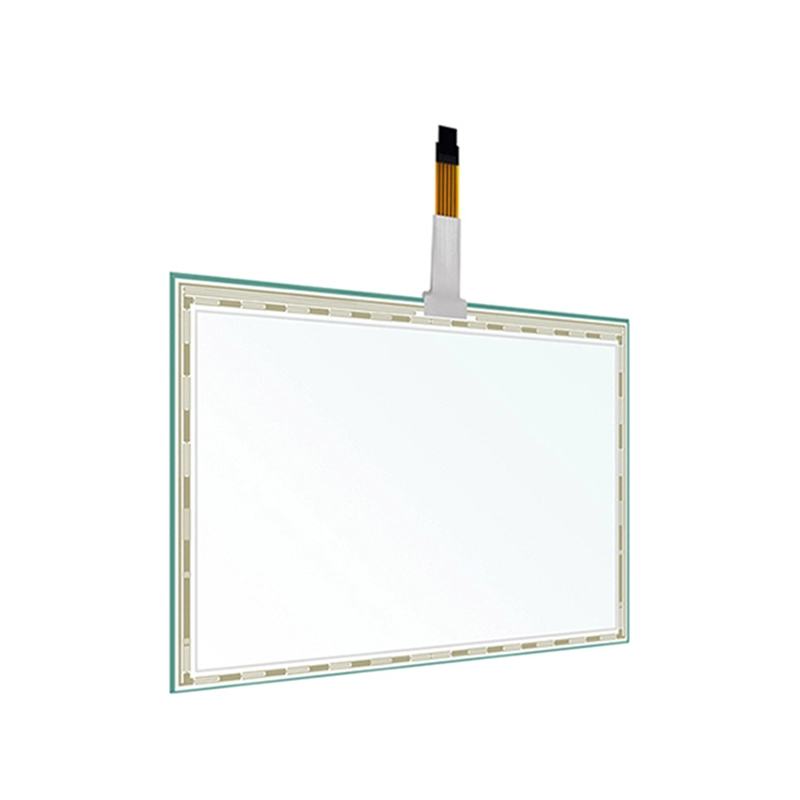

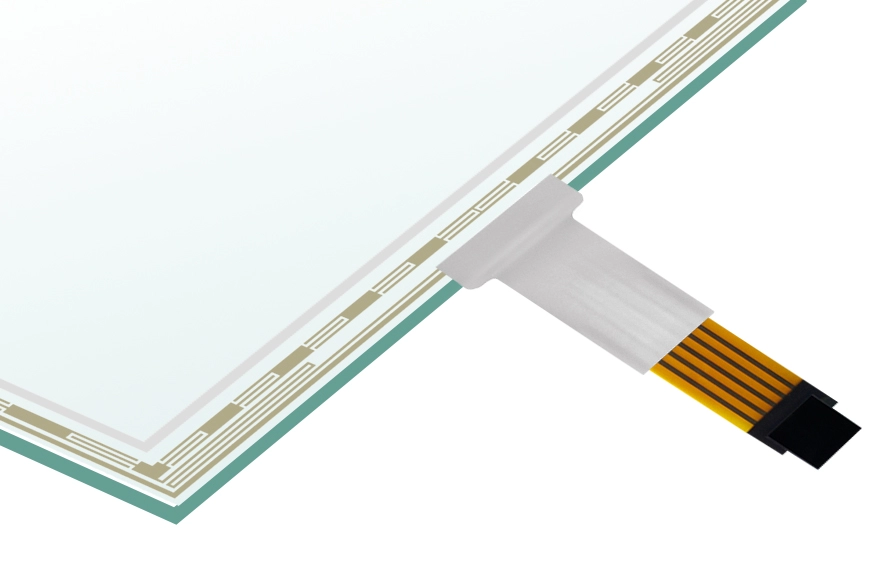

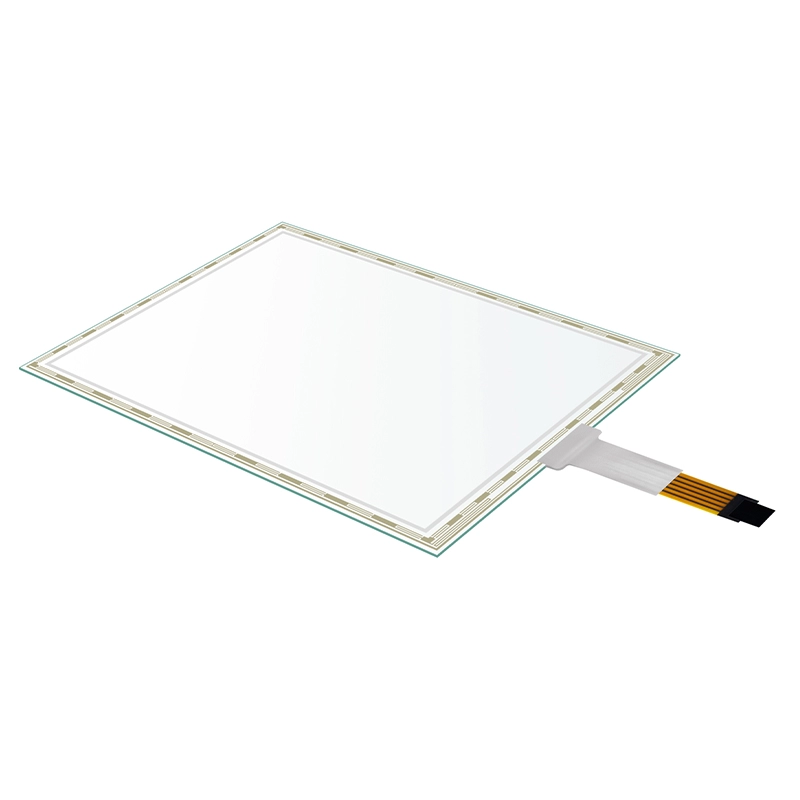

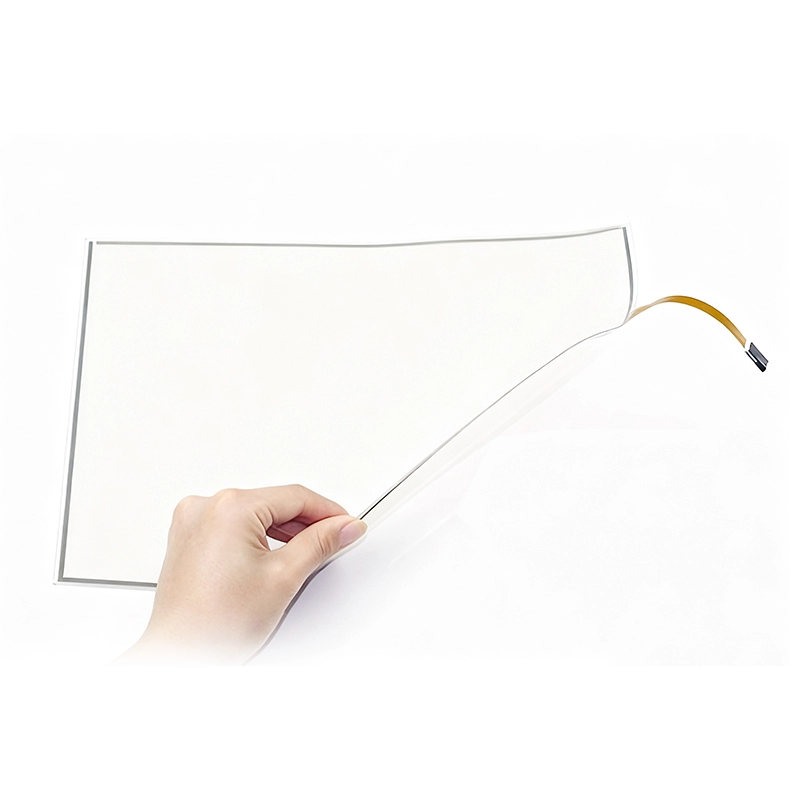

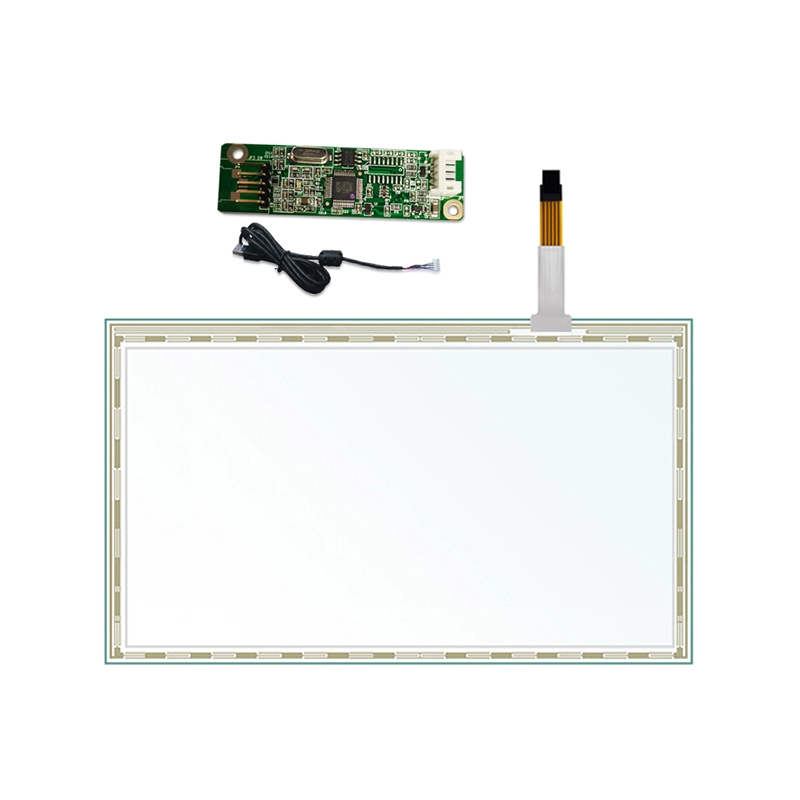

Resistive Touch Screen 7 to 22 Inches(5 Wire)

Product Information

Resolution:4096×4096

Life Time:1.000.000 times

Product Structure:ITO Film+ITO Glass

Certificates:CE,FCC,RoHS

Features

● Light touch, no drift, no calibration and high stability

● Can be sealed against contamination,support NEMA 4/4x/12.

● Can meet the pencil hardness 3H per ASTM D3363

● Use mist hard coating & anti-newton rings,prevent scratches

● Own class 1,000 clean room,full inspection,fast delivery

Get a quote

Online Consultation

Product Description
Customization Options
Specifications
Application Field

Customization Options

GreenTouch 5 wire resistive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness,matte anti-newton ring,anti-glare finish,smooth finish,controllers and Interfaces,high temperature,high humidity,anti-UV etc

Specifications

General Manufacturer:GreenTouch Product Name:5 Wire Resistive Touch Screen Regular Sizes:7″,10.4″,12.1″,14.1″,15″,15.6″,17″, 17.3″,18.5″,19″,21.5″,22″ Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:ITO Film+ITO Glass Surface Hardness:≥3H Diagonal Size:7 to 22 inches Aspect Ratio:16:9,4:3,16:10 Resolution:4096 x 4096 Response Speed: <10ms Touch Technology: Resistive Single touch Control Interface: USB or RS232 Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity: 90% relative humidity, no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS

Application Field
