High Brightness Touch Panel PC 10.1-23.8 Inches(2CGL Series) – Jiaxing Zhengguang Intelligent Co., Ltd

High Brightness Touch Panel PC 10.1-23.8 Inches(2CGL Series)

Product Information

High Brightness:1000-1500 cd/m²

Processor:Rockchip RK3566/3568/3588

RAM:2-8GB,SSD:32-64G

Wide temperature range:-30℃-70℃

Application:Outdoor/semi-outdoor/indoor

Features

● 1000 cd/m²brightness,visible under strong light

● IP65 and front protection to resist water and dust

● Resistant to high and low temperatures

● Industrial-grade LCD panels for long operating life

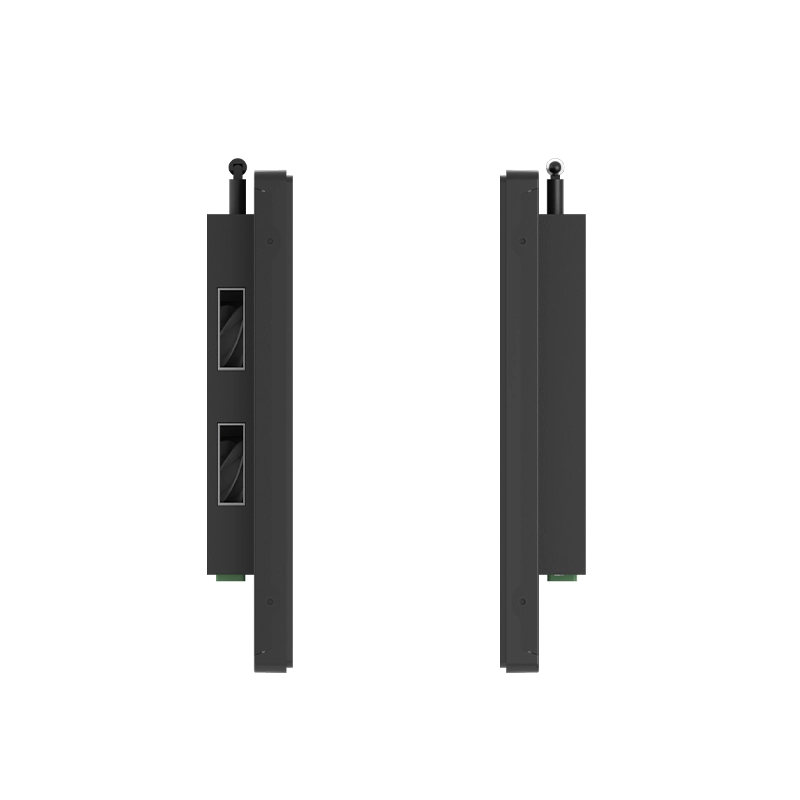

● Built-in two low-frequency turbine fans to improve heat dissipation

Get a quote

Online Consultation

Product Description

2CGL Touch Panel PC Overview

GreenTouch’s 2CGL Series high-brightness touch panel PCs provide stable and reliable solutions for applications requiring clear visibility and responsive touch operation in bright environments.A comprehensive size range from 10.1 ”to 23.8” ensures compatibility with:Outdoor and public information, industrial automation, transportation, medical equipment, military and security, retail and food service, energy and outdoor operations.
Configuration and Connectivity

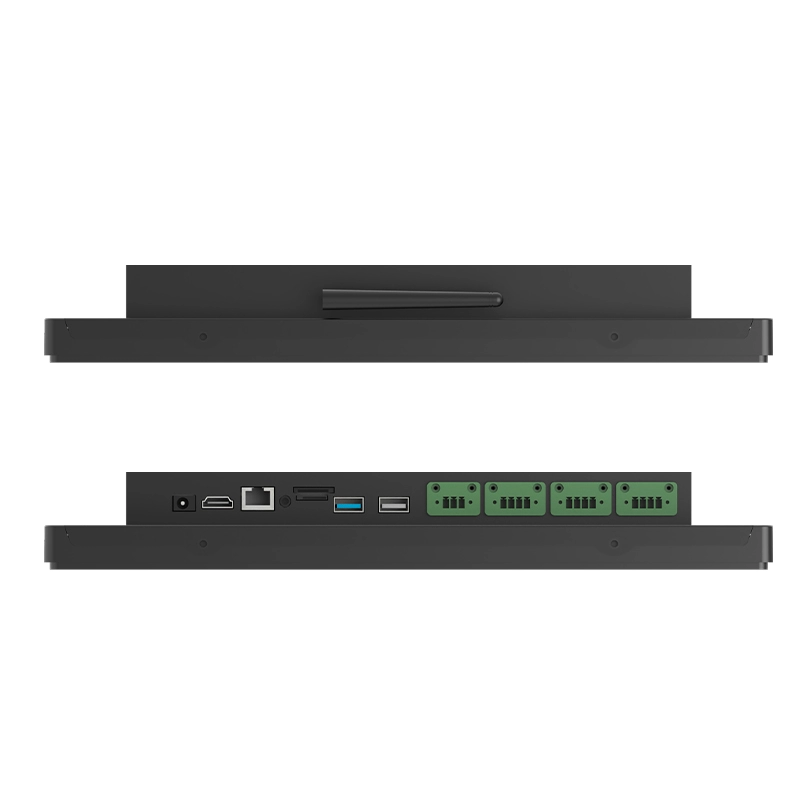

The GreenTouch capacitive touch panel PC 2CGL series includes HDMI,LAN,PHONE,TF,USB,RS485,RS232,DC12V ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 2CGl uses thehigh-performance low-power quad-core Rockchip RK3566/3568/3588 processor with a main frequency of 1.8 GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.
Function And Structure

Our self-developed 2CGL high-brightness touch display achieves strong light visibility, interactive all-in-one functionality, and high environmental adaptability. They adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. The precise, slim-bezel design provides a fully sealed touchscreen structure, making it easier for customers to install the monitor in a cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .
Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 5:4) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.8”

Mounting Options

Embedded

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

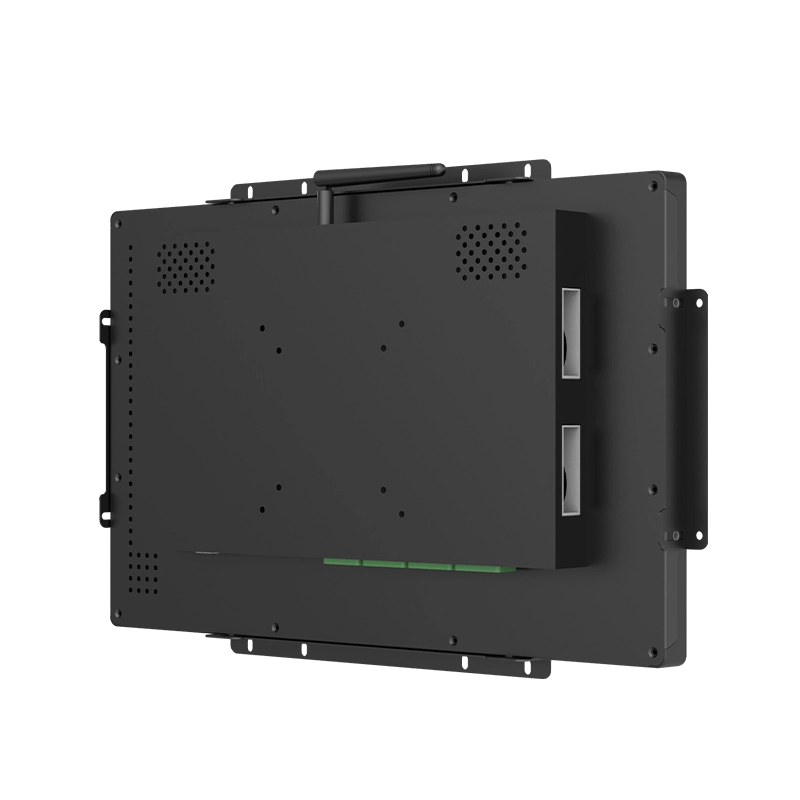

The touch display includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2CGL panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:High Brightness Touch Display(2CGL) Regular Sizes: 10.1″,10.4″,12.1″,13.3″,15″, 15.6″,17″,18.5″,19″,21.5″,23.6″,23.8″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

OS-Android CPU:Rockchip RK3566/3568/3588 RAM:2GB,4GB,8GB Optional SSD:32G,64G Network support:3G,4G,5G,Ethernet,WiFi/Bluetooth 4.0 Wireless:802.11b/g/n, default single WiFi module

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1920×1080,1280×800,1024×768@60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,LAN,PHONE,TF,USB,RS485,RS232

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK08 impact resistance

About Display Ports

Android:HDMI

Application Field
