High Brightness Touch Monitor 10.1-23.8 Inches(2CGL Series) – Jiaxing Zhengguang Intelligent Co., Ltd

High Brightness Touch Monitor 10.1-23.8 Inches(2CGL Series)

Product Information

High Brightness: 1000-1500 cd/m²

Wide Temperature Operating: -30°C to 70°C

Application: Outdoor/semi-outdoor/indoor

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Features

● 1000 cd/m²brightness,visible under strong light

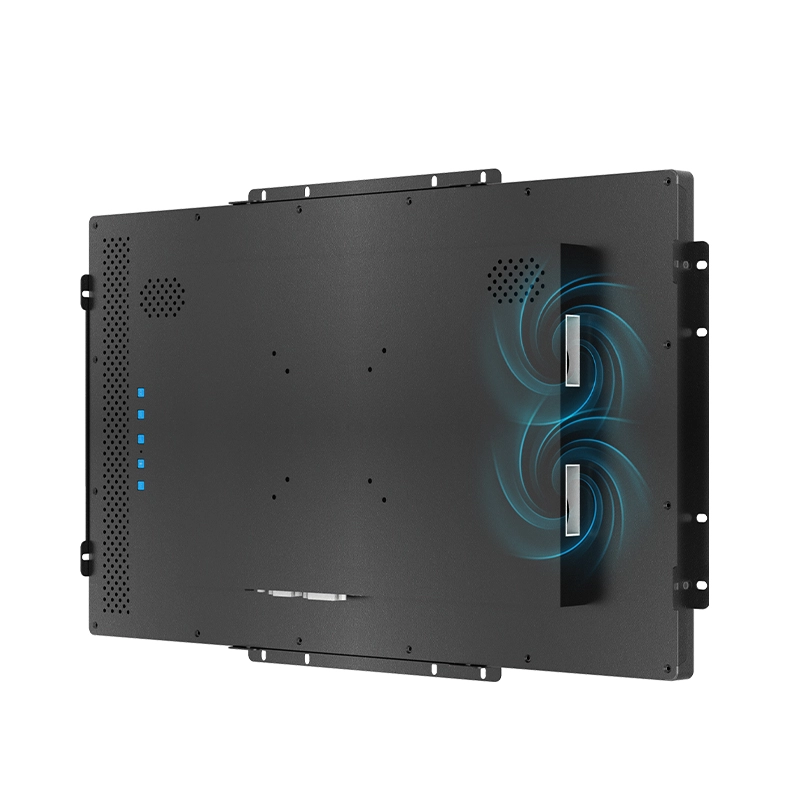

● Built-in 1-2 cooling fans, active circulation heat dissipation

● IP65 and front protection to resist water and dust

● Resistant to high and low temperatures

● Dense ventilation holes for reliable 24/7 operation

● Industrial-grade LCD panels for long operating life

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field

Product Description

2CGL Touch Monitor Overview

GreenTouch’s 2CGL Series high-brightness touch monitors provide stable and reliable solutions for customers who require clear visibility and responsive touch interaction in high-ambient-light environments.A comprehensive size range from 10.1 ”to 23.8” ensures compatibility with:Outdoor and public information, industrial automation, transportation, medical equipment, military and security, retail and food service, energy and outdoor operations.
Versatile Connectivity

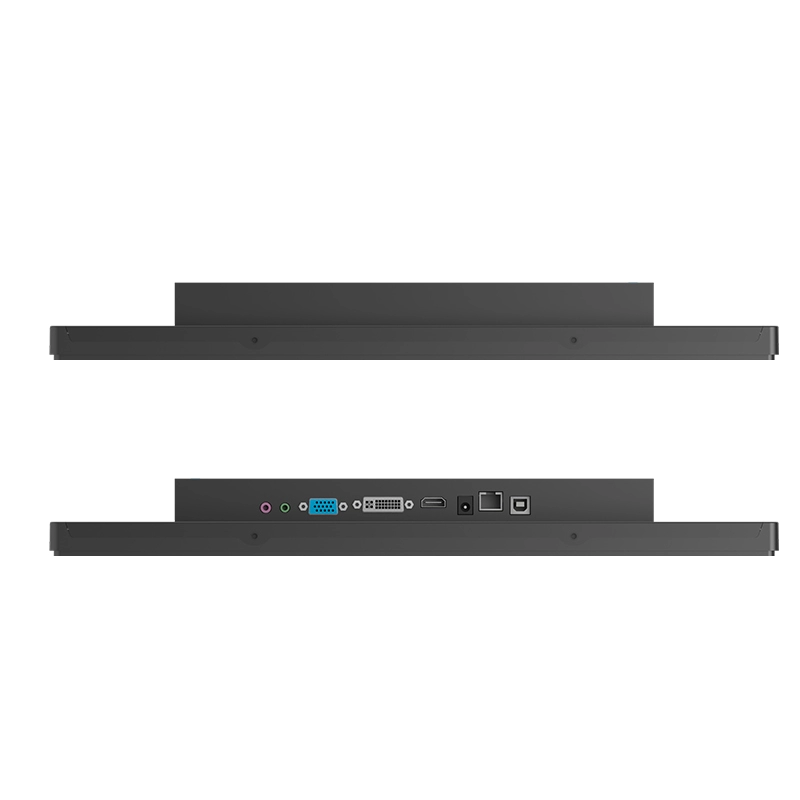

The GreenTouch capacitive touch monitors 2CGL series includes HDMI, VGA, DP, DVI ,DC IN,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

Our self-developed 2CGL high-brightness touch display achieves strong light visibility, interactive all-in-one functionality, and high environmental adaptability. They adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its compact, slim-bezel design provides a fully sealed touchscreen structure and enables easy integration into cabinets.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable.

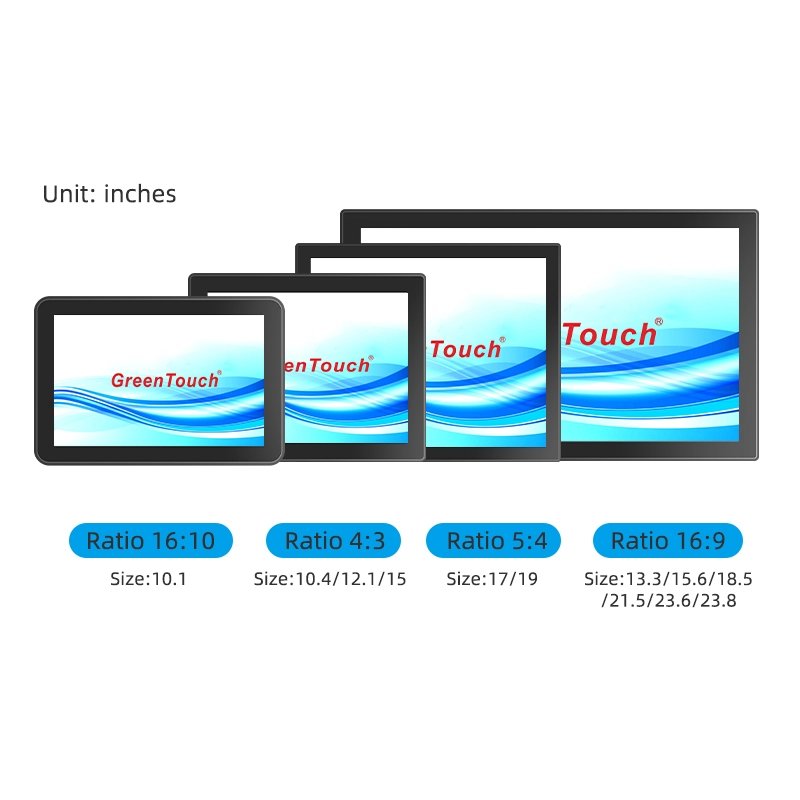

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 4:3) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.8”

Mounting Options

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2CGL is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(2CGL Series) Regular Sizes:10.1″,10.4″,12.1″,13.3″,15″,15.6″,17″, 18.5″,19″,21.5″,23.8″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1280×800,1024×768,1920×1080, Aspect Ratio:16:10,4:3,16:9,5:4 1280×1024@60Hz Brightness:1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65,IK08 impact resistance

About Display Ports

VGA+DVA+HDMI

Application Field
