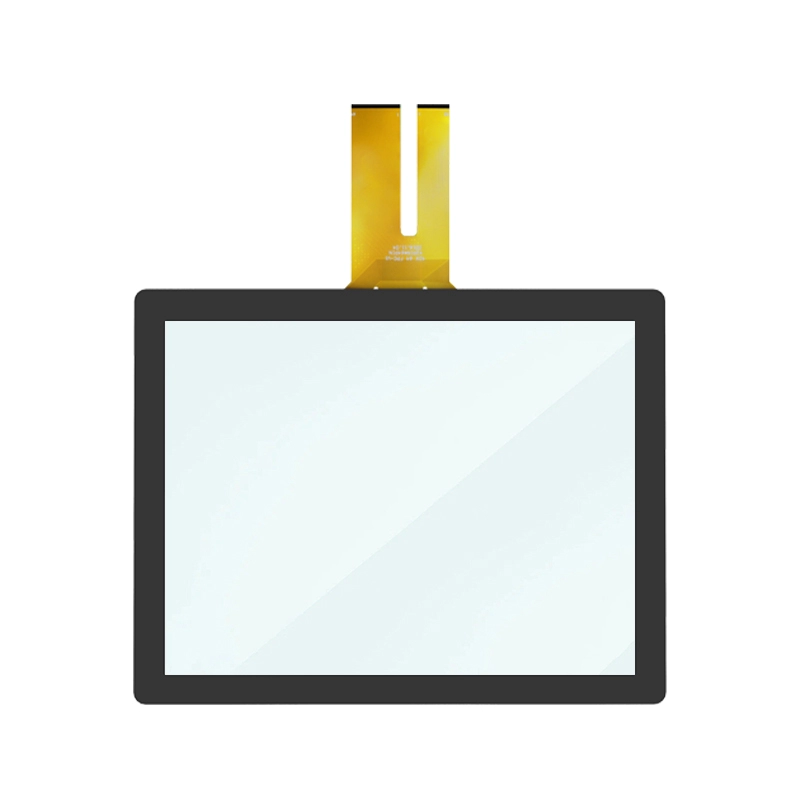

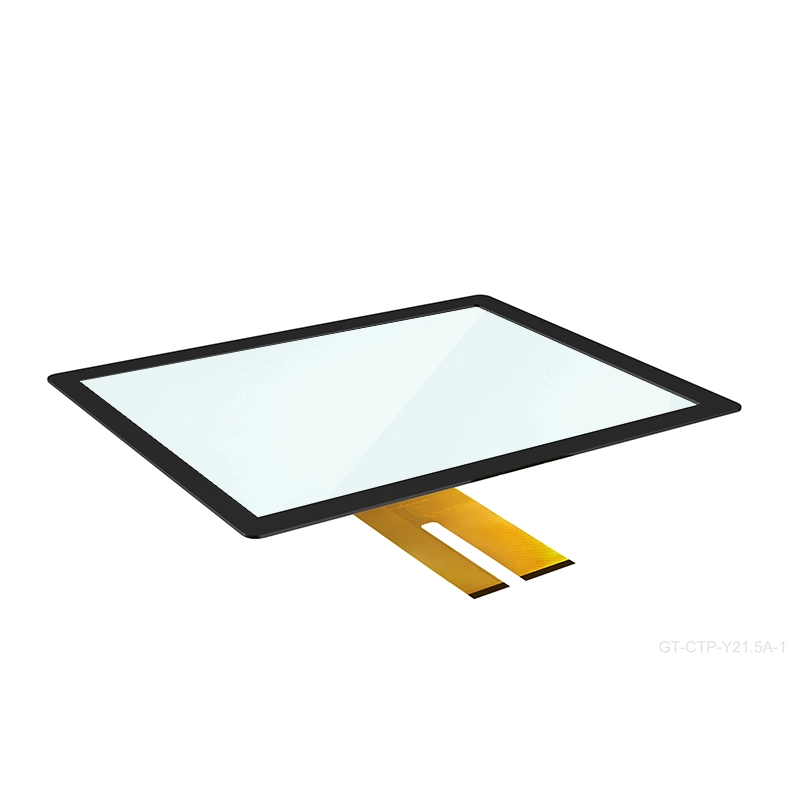

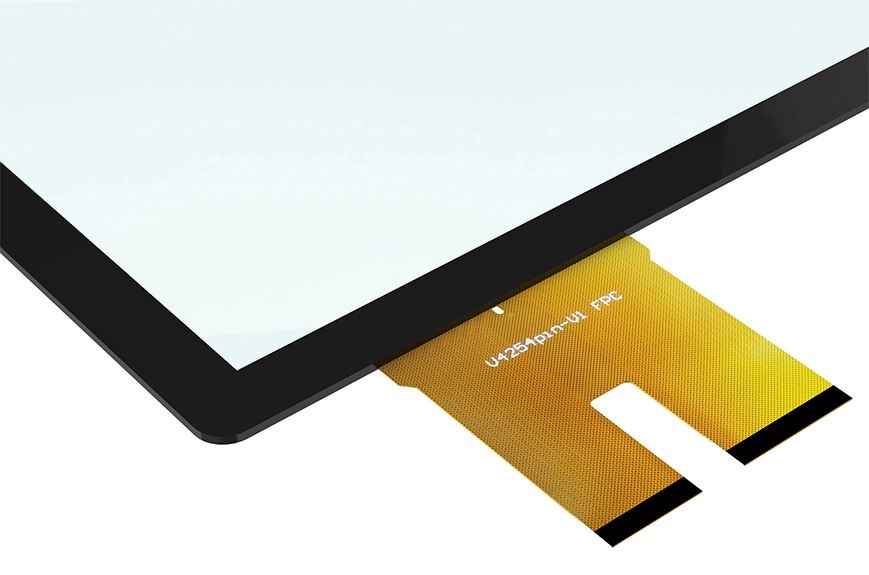

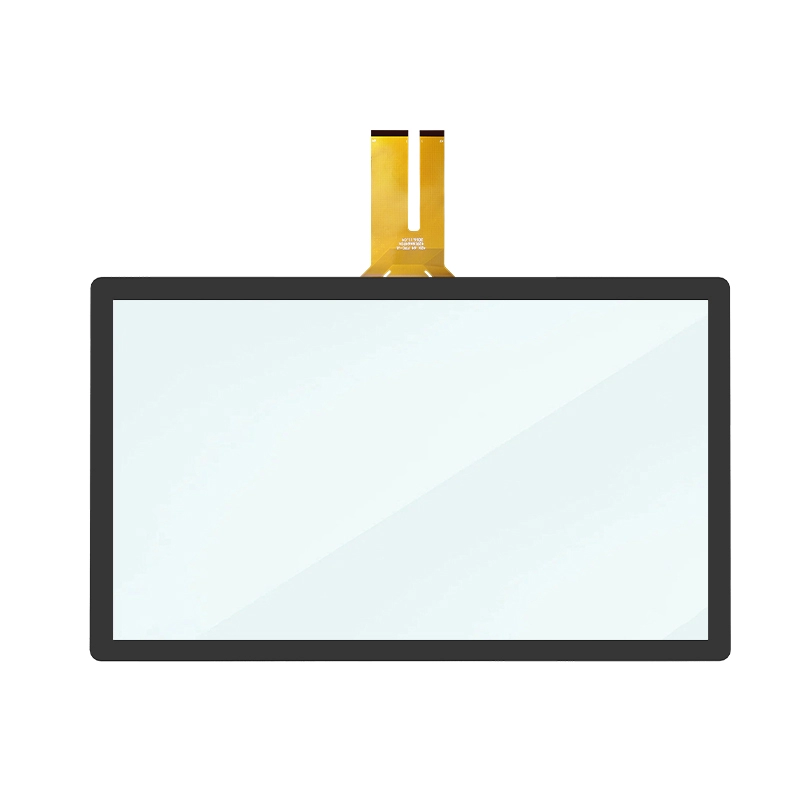

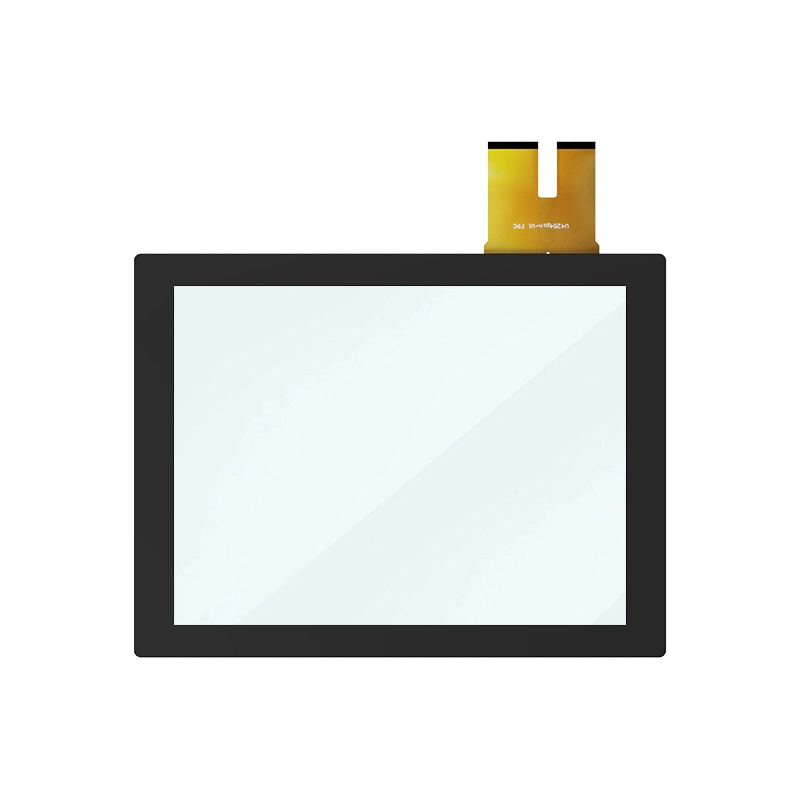

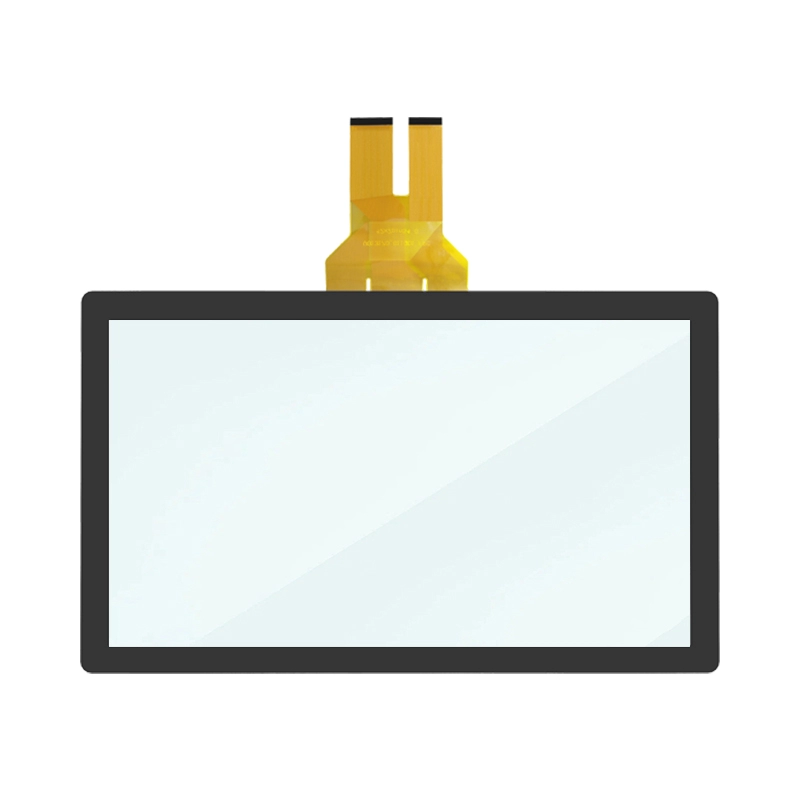

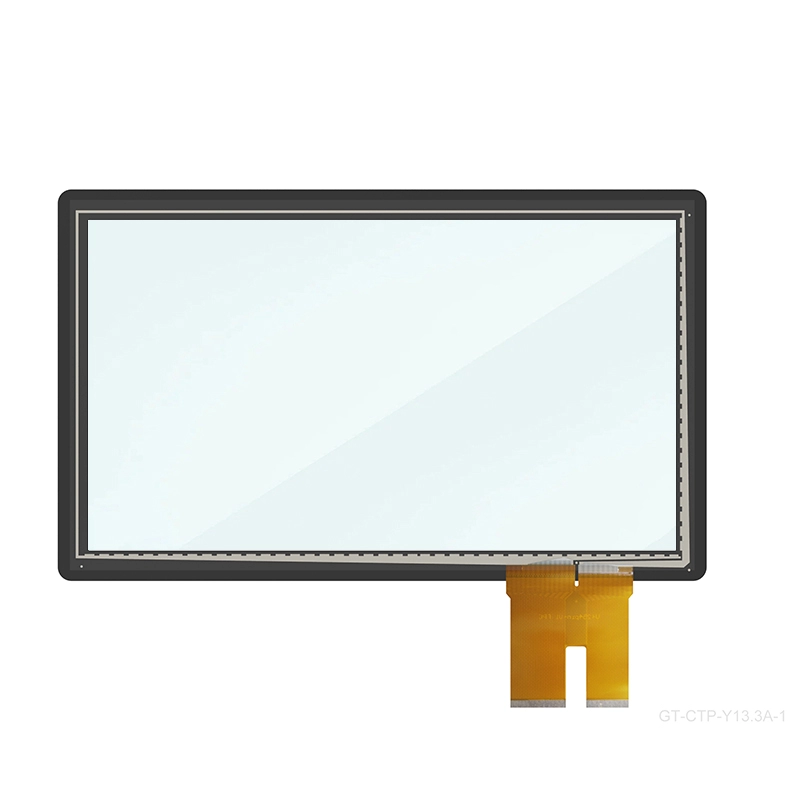

Capacitive Touch Screen 10.4 to 23 Inches

Product Information

Touch Points:UP to 20 Points

Touch lifespan:Unlimited Times

Cover: Glass+ITO Glass+SCA+FPC

Customizable: Size,Logo,Color,Casing,Packaging

FPC outlet locatio,Glass thickness，AG, AF,AR

Features

● 3mm temper protective glass,IK08,IK10+maximum

● Compatible with WEIDA,ILITEK,EETI USB&RS232 controller

● High optical penetration,transparency>85%,

● Own class 1,000 clean room,full inspection,fast delivery

● Complete solution including touch screen, controller, firmware,and software

Get a quote

Online Consultation

Product Description
Customization Options
Specifications
Application Field

Product Description

Capacitive Touch Screen Overview

GreenTouch capacitive touchscreens provide efficient touch solutions for industrial touch customers who seek superior interactive experiences, product modernization, and long-term reliability.A medium size range from 10.4 ”to 23” ensures compatibility with:Industrial automation and control, retail, food and beverage and business services, medical and professional equipment, transportation and automotive, finance and government.
Function And Structure

Our capacitive touch panel with pure plane structure,excellent craftsmanship,slim and smooth design.And use stable IC and bonding equipment to maintain high yield and quality.They accurate touch ,10 to 20 touch points,high sensitivity,smooth writing,no disconnection,no drift.And the glass cover each IP level,mpact resistance,prevent damage and scratch.
Connections and Systems

The steps to connect the capacitive touchscreen as follows: 1. Align and connect the touchscreen FPC and driver board pins,2.Connect the USB cable,3. Insert the FPC into the motherboard or control card， 4. Connect the capacitive touchscreen’s USB to the host， 5. Configure and calibrate the software， 6. Test and installation complete.GreenTouch pcap touchscreens have broad operating system compatibility, supporting the following mainstream systems: Windows, Android, and Linux
Multiple sizes available

(Ratio 4:3)
Size:10.4”,12.1”,15”,17”,19”
(Ratio 16:9)
Size:,13.3”,15.6”,18.5”,21.5”,23”
(Ratio 16:10)
Size:22”

Customization Options

GreenTouch capacitive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness, controllers and Interfaces,surface treatment: AG, AR, AF, antibacterial and bacteriostatic etc.

Specifications

General Manufacturer:GreenTouch Product Name:Capacitive Touch Screen Regular Sizes:10.4″,12.1″,13.3″,15″,15.6″, 17″,18.5″,19″,21.5″,22″,23″ Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Glass+ITO Glass+SCA+FPC Surface Hardness:≥6H Diagonal Size:10.4 to 23 inches Aspect Ratio:16:9,4:3,16:10 Resolution:4096 x 4096 Response Speed: <10ms Touch Technology:Capacitive 10 to 20 touch points Control Interface:USB or RS232,I2C Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:–10°C to 50°C Storage Temperature:-20°C to 60°C Humidity: 90% relative humidity, no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS
